Shinu-X500 Fusion Splicing Machine – 4 Motors

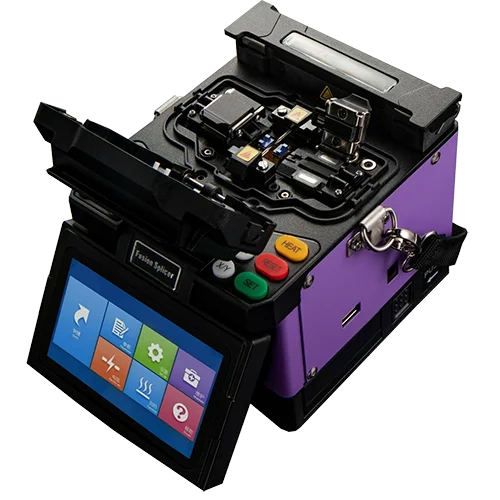

Shinu-X500 Splicing Machine The Shinu-X500 Splicing Machine is a next-generation fusion splicer engineered for precision, speed, and durability. Designed with 4 motors active V-groove alignment, it ensures ultra-precise core positioning, resulting in an average splice loss as low as 0.03dB. Whether you’re working on FTTH, FTTx, or backbone fiber installations, this Splicing Machine is built to deliver stable performance and long-term reliability. Additionally, its inductive heater and industrial-grade CPU accelerate the splicing and heating process, boosting productivity on the field. Moreover, with a pluggable 5200mAh battery supporting over 250 splice-and-heat cycles, you’re always ready for high-volume jobs. The dual high-sensitivity camera and 4.3-inch LCD display offer clear splice monitoring, while the auto-calibration features ensure optimal ARC and positioning every time. Specifications Feature Specification Alignment Method 4 Motors Active V-Groove Applicable Fibers SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), BIF(G.657) Cladding Diameter 80–150μm Coating Diameter 160–1000μm Splice Time Typical 7 seconds Heating Time 18 seconds (40/60mm sleeves) Splice Loss SM: 0.02dB; MM: 0.01dB; DS/NZDS: 0.04dB Return Loss >60dB Battery 5200mAh, 250+ cycles Display 4.3” LCD, dual-camera Data Storage 4000 groups Weight 1.9 kg (with battery) Power Supply AC100–240V input / DC11–13.5V output Electrode Life >4000 ARC discharges
