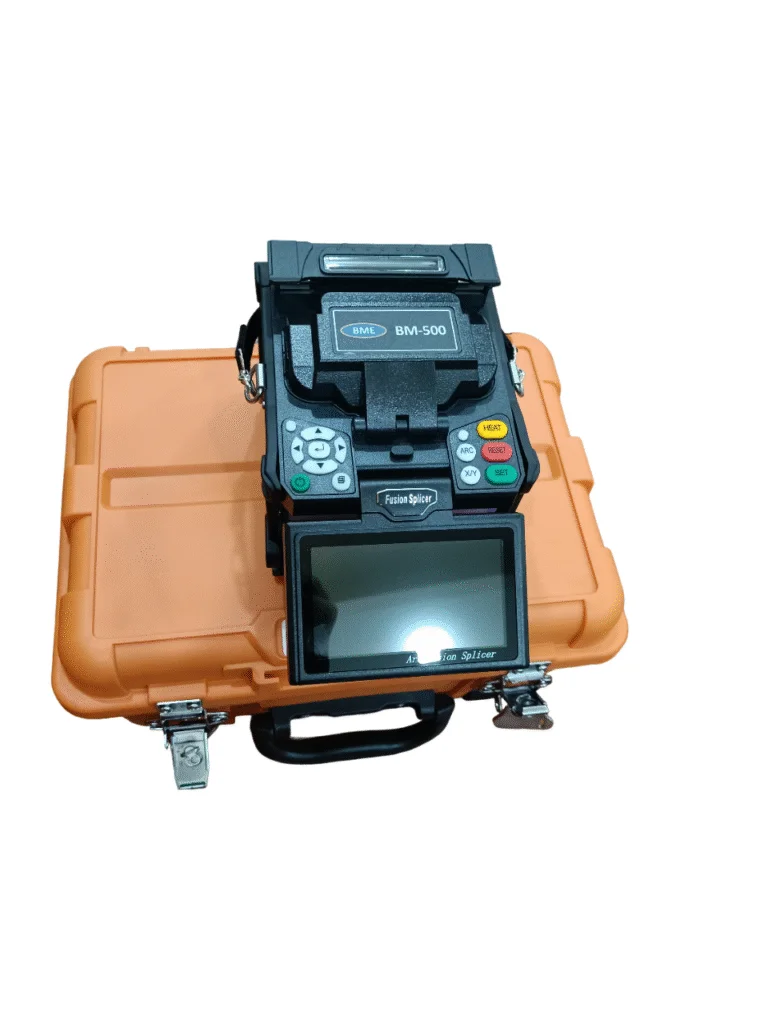

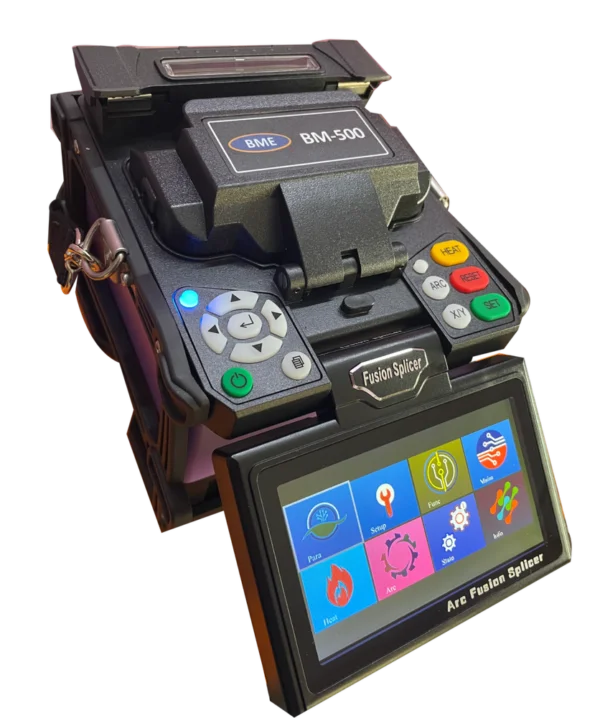

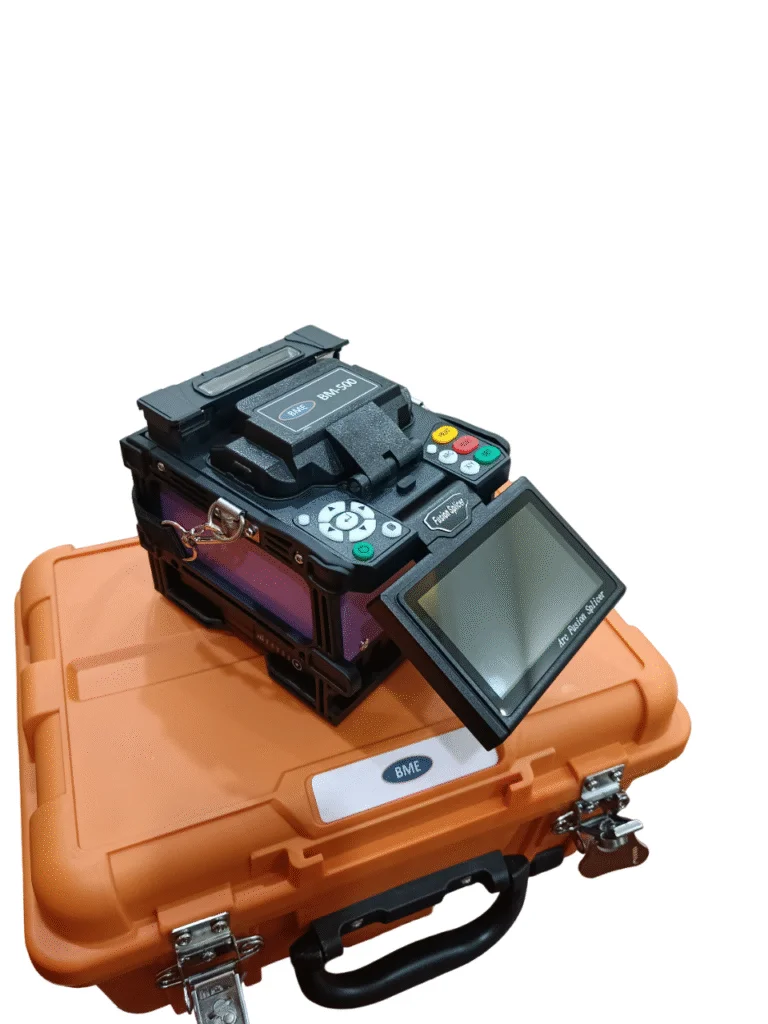

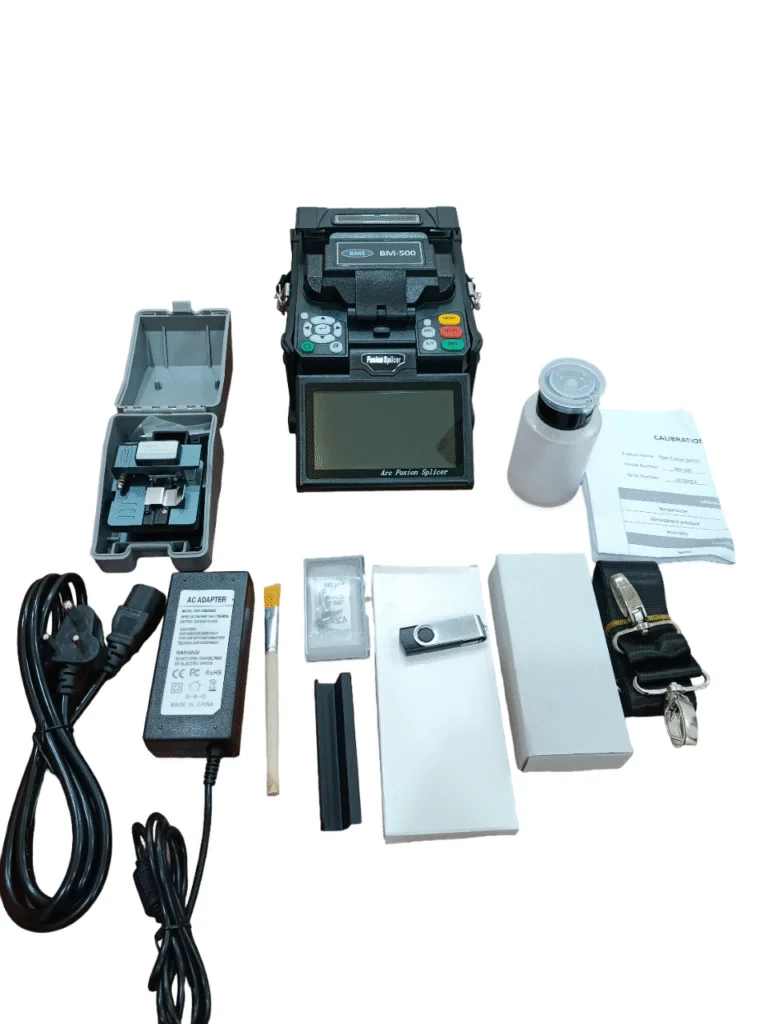

Fusion Splicing Machine – BME- BM-500

BME BM-500 Splicing Machine – Core-to-Core Fiber Alignment, Handheld, High-Precision We also offer related products, such as OTDR, power meter, light source, VFL, toolkit etc. Features *Handheld, Small, Light *Industrial standard screen *Various colors are available *Core to core digital alignment *8s splicing stime,26s tube heating time *5800mAh and pluggableLi-battery, Typical 200cycles *ARC calibrated bytemperature and air pressureautomatically *Automatically switching on windshield andheater in 4steps *Apply to bare fibers, indoor cablesand jumper wiressplicing Data Sheet Applicable fiber SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657) Fiber count Single Applicable fiber dimensions Cladding diameter: 80 -150μm, Coating diameter: 160 -900μm Typical splice loss 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) Return loss >60db Fiber cleaved length 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm ) Splicing program 40 groups Operate mode Manual, Automatic Auto-heating Available Typical splicing time 8 seconds Tube heating time 26 seconds for 60mm and 40mm shrinkable sleeves Fiber view magnification 250X(X or Y view), 125X(X and Y view) Viewing method and display 2 CMOS cameras, 4.3 inch color LCD monitor Storage of splice result 4000 results Loss evaluation Available Tension test 1.8-2.2N Interface GUI menu interface, easier operation Battery capacity 5800mAh, typical 180 cycles(splice and tube heat), pluggable inner Li-battery Power supply Adaptor, input: AC100-240V(50/60HZ) Electrode life More than 4000 ARC discharges, can be replaced conveniently Terminals USB 2.0 port, for uploading splice results and upgrading software Operating condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: max 15m/s Dimension 149mm(L)x120mm(W)x127mm(H) Weight 1.9kg including battery
