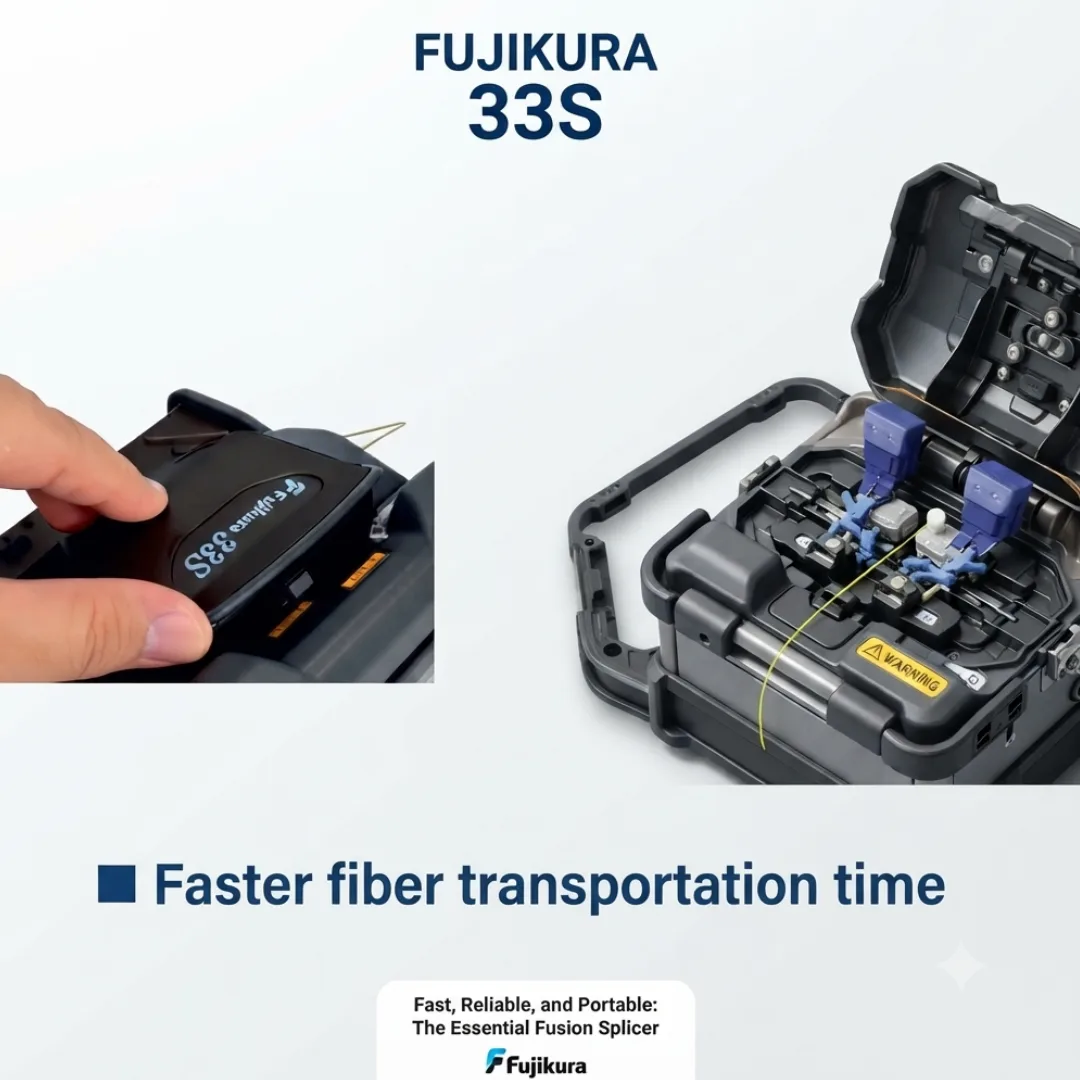

Fujikura 33S Active V-Groove Single Fiber Fusion Splicer

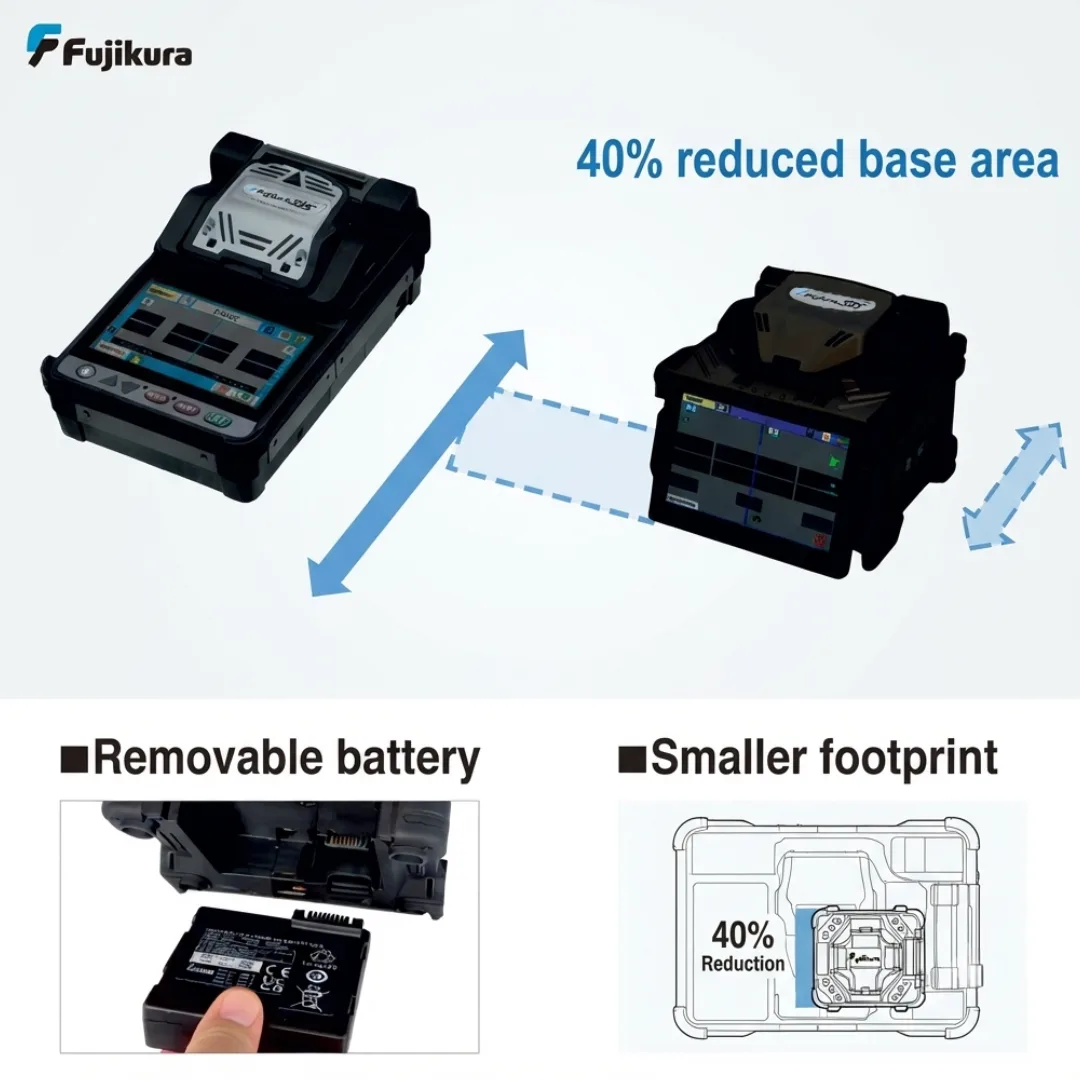

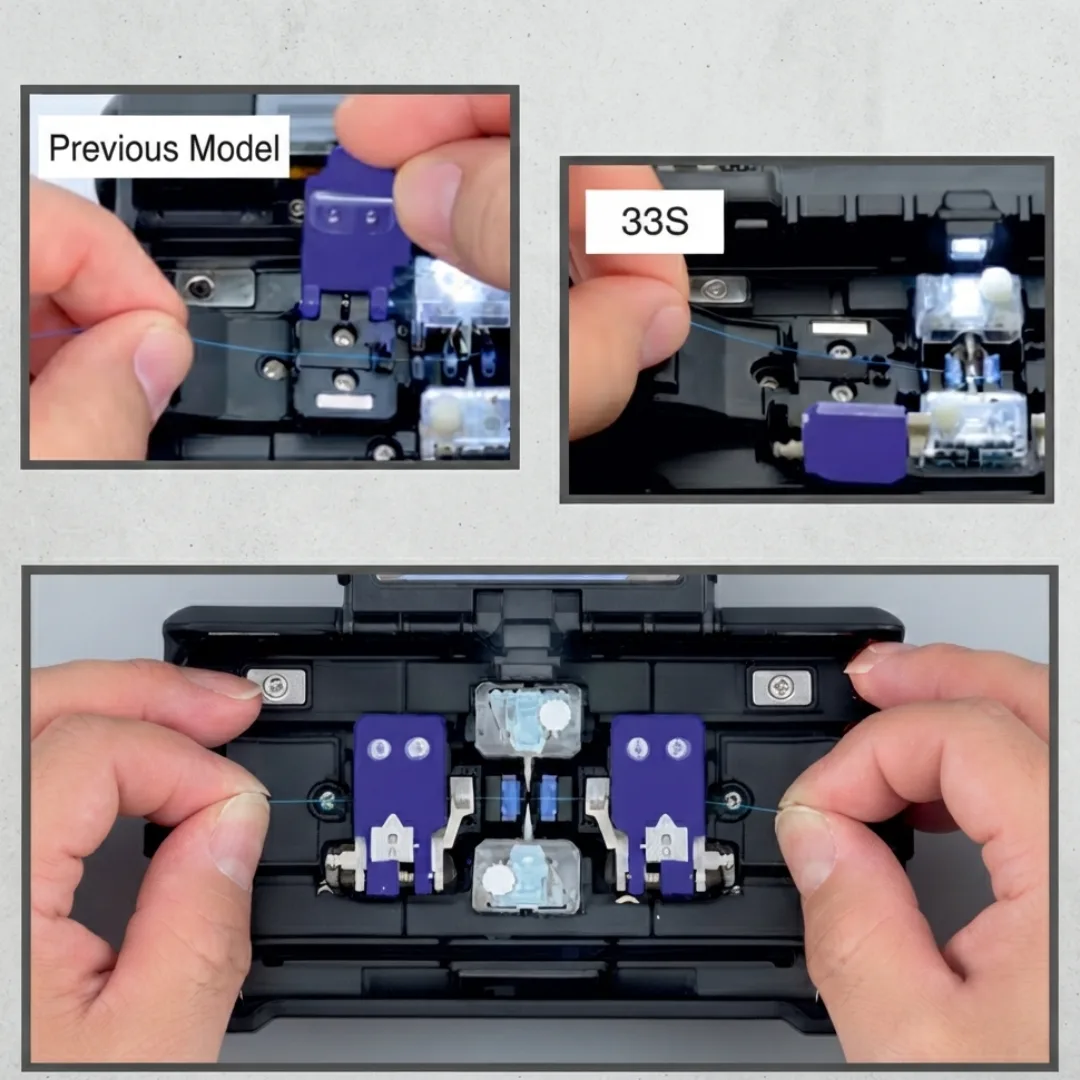

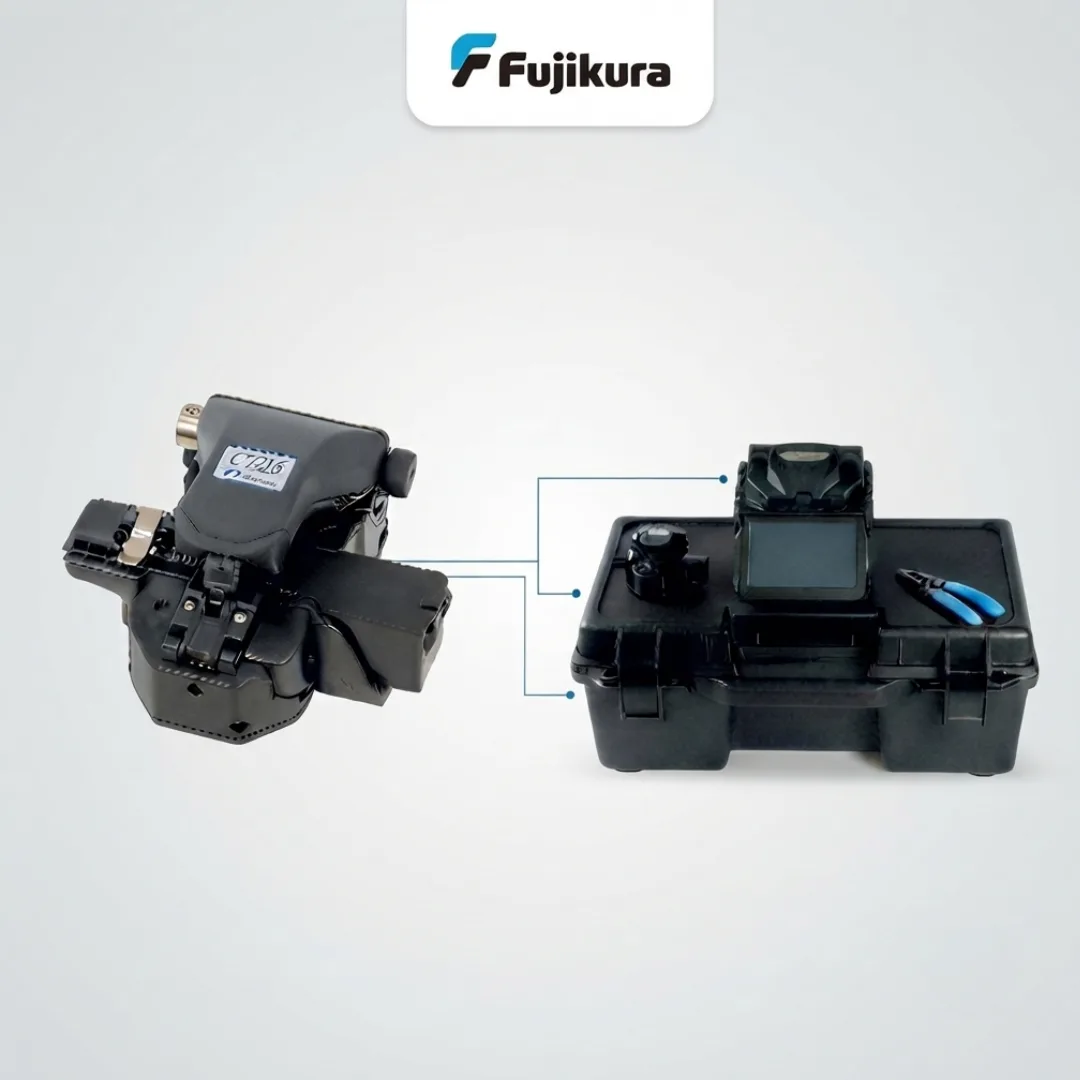

Fujikura 33S is a compact single-fiber fusion splicer designed for practical and efficient fiber optic installation work. Its Active V-Groove alignment system supports accurate fiber positioning for both single-mode and multi-mode optical fibers, while the movable touch LCD monitor makes operation more convenient in different working positions. The 33S is designed with field work in mind, featuring a lightweight body, removable rechargeable battery, automatic fusion and heating functions, and easy fiber preparation. The setup can be used with the supplied fiber stripper, cleaver, fiber scrap collector, and other accessories, making it a useful choice for FTTH projects, telecom installations, fiber maintenance, and network deployment work. Key Features: Active V-Groove / Clad Alignment Single Fiber Splicing for SM & MM Fiber 4.95-inch Touchscreen LCD Lightweight 1.4 kg Design Removable Li-Ion Battery Specifications: Fiber Type - SM & MM Fiber Count -Single Fiber Alignment Method - Active Clad Alignment Splice Time -Approx. 6–7 sec Splice Loss -Approx. 0.03 dB (G.652) Display -4.95-inch TFT Touchscreen Battery -14.4V, 3190mAh Li-Ion Weight- Approx. 1.4 kg Standard Package / Box Contents: Fujikura 33S Fusion Splicer – 1 pc BTR-17 Battery Pack – 1 pc ADC-21 AC Adapter – 1 pc AC Power Cord – 1 pc USB Cable USB-01 – 1 pc Spare Electrodes ELCT2-16B – 1 pair Carrying Case CC-44 – 1 pc PC Setting Guide SG-09-E – 1 pc Warning & Cautions Guide – 1 pc Splice Test Report – 1 pc Instruction Manual – 1 pc Quick Reference Guide – 1 pc SS05 Single Fiber Stripper – 1 pc CT16 Optical Fiber Cleaver – 1 pc FBD-06 Fiber Scrap Collector – 1 pc AD-16A Fiber Setting Plate – 1 pc HEX-01 Hexagonal Wrench – 1 pc
