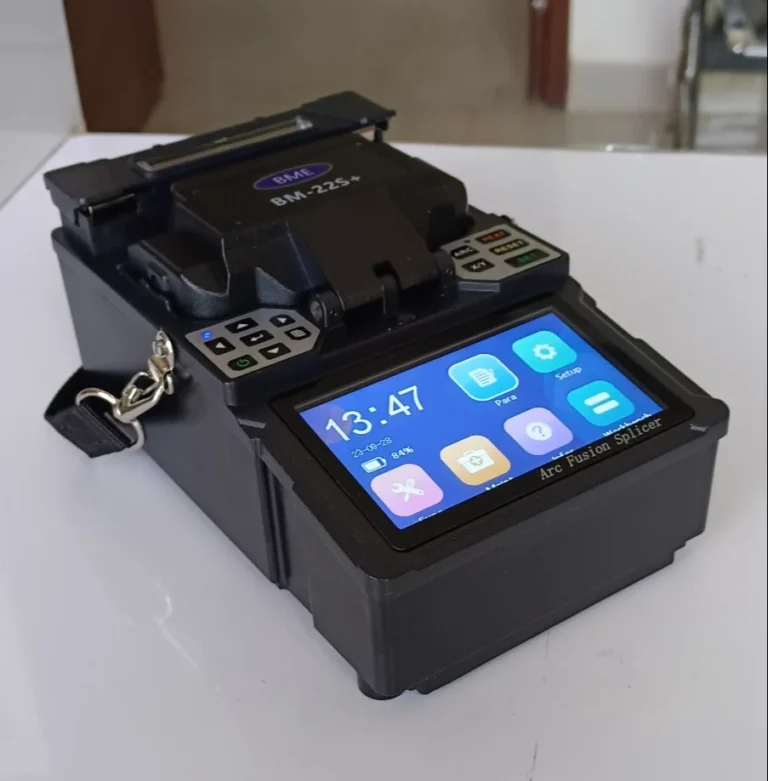

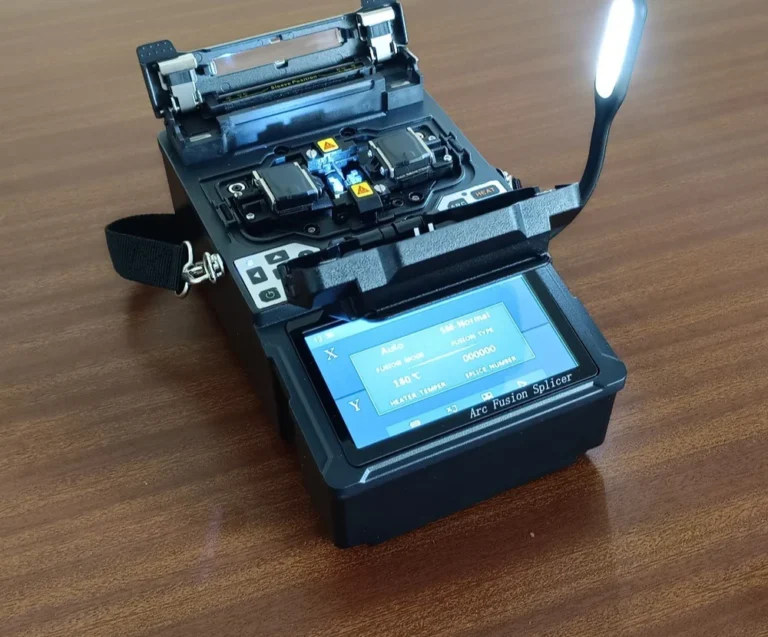

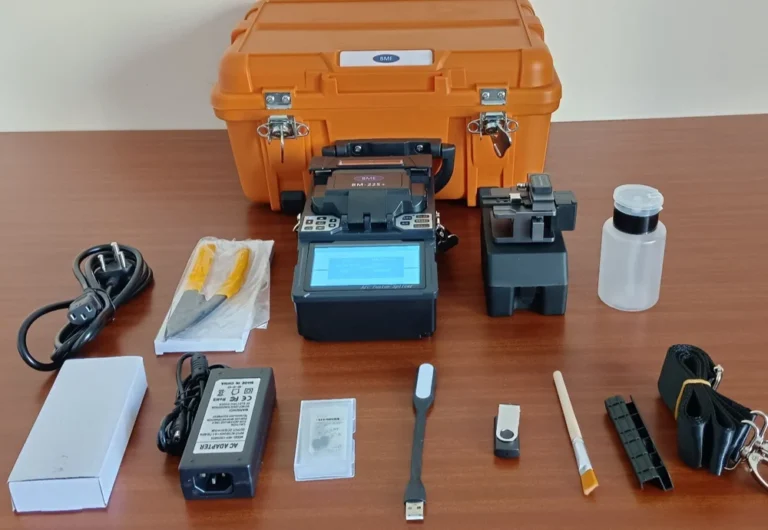

Fusion Splicing Machine – Fully Automatic BME 22s+

BME 22s+ Fiber Optic Splicing Machine – Fully Automatic Typical Splice Loss G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G655: 0.04dB; G657: 0.02dB Return Loss ＞60dB Splicing Program 40 modes Operation Mode Manual/ Auto Auto-Heating Available Splicing Time 7~12 seconds Heating Time 20~26 seconds for 40mm and 60mm shrinkable sleeves Fiber Magnification 320X(X or Y view), 160X(X and Y view) Viewing Display Dual high sensitivity camera, 4.3”HD color LCD touch screen Data Storage 8000 groups fusion records Loss Evaluation Available Tension Test 1.8～2.2N Interface GUI menu interface, easy for operation Battery Capacity Detachable 5200mAh Li-battery , typical 250 cycles splicing and heating Power Supply Adapter, input: AC100~240V(50/60Hz), output: DC11~13.5V Electrode Life More than 4000 ARC discharges, easy to replace Terminal USB 2.0 port, for software upgrading, records exporting Operating Condition Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s Dimension/Weight 200mm(L)×123mm(W)×95mm(H)/1.66kg(with battery)
