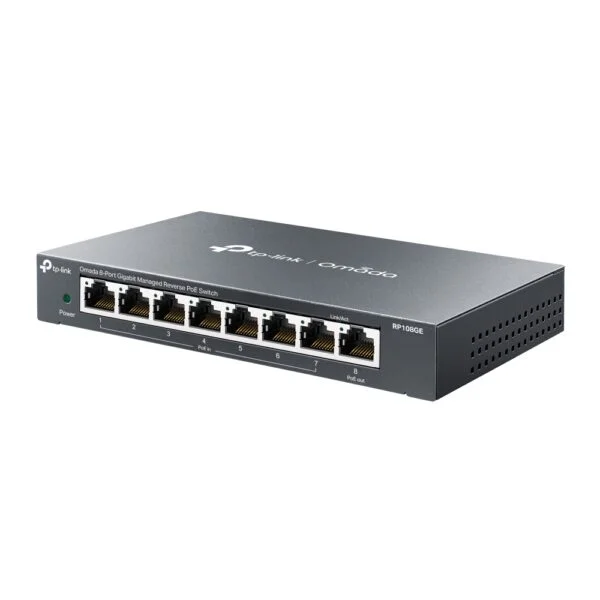

TP-Link TL-RP108GE 8 Port Gigabit Managed Reverse PoE Switch

RP108GE Omada 8-Port Gigabit Reverse PoE Switch 7 PoE input and 1 PoE output 10/100/1000 Mbps RJ45 Ports 1 DC output port that supports both 5V and 12 V voltage switching Durable metal casing of superior quality and professional appearance Intelligent management via a web user interface and downloadable utility Green technology reduces power consumption HARDWARE FEATURES Standards and Protocols CSMA/CD Interface • 7× Passive PoE-in RJ45 Ports • 10/100/1000Mbps Auto-Negotiation • Voltage: 24/48 V (mixture is not supported) • Power pin of Ethernet cable: 4/5+ 7/8-• 1× Passive PoE-out RJ45 Port: • 10/100/1000Mbps Auto-Negotiation • Voltage: depending on the input voltage of PoE-in ports • Power pin of Ethernet cable: 4/5+ 7/8-• 1× DC Output Port • Voltage: 5/12 V Network Media • 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m)• 100Base-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m)• 1000Base-T: UTP category 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) LED Power, Link/Act LED Packet Forwarding Rate 11.9 Mbps Mac Address Table 4 K Jumbo Frame 16 KB Switching Capacity 16 Gbps IEEE Standards IEEE802.3ab, IEEE802.3i, IEEE802.3p IEEE802.3q, IEEE802.3x, IEEE802.3u Data Rates • Ethernet: 10 Mbps (Half Duplex), 20 Mbps (Full Duplex) • Fast Ethernet: 100 Mbps (Half Duplex), 200 Mbps (Full Duplex) • Gigabit Ethernet: 2000 Mbps (Full Duplex) Dimensions ( W x D x H ) 6.2 × 3.9 × 1.0 in (158 × 99.1 × 25 mm) Max. Power Consumption • 3.98 W (with no PD connected) • 18.01 W (24 V with PD connected) • 32.74 W (48 V with PD connected) Max Heat Dissipation • 13.57 BTU/h (with no PD connected) • 61.41 BTU/h (24 V with PD connected) • 111.64 BTU/h (48 V with PD connected) SOFTWARE FEATURES Quality of Service • Port-based/802.1p/DSCP priority • 4 priority queues • Rate Limit • Storm Control L2 Features • IGMP Snooping V1/V2/V3 • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention VLAN • Up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Content • RP108GE • Power Cord • Installation Guide • Rubber Feet System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. Environment • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
