TP-Link EAP235 WALL AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

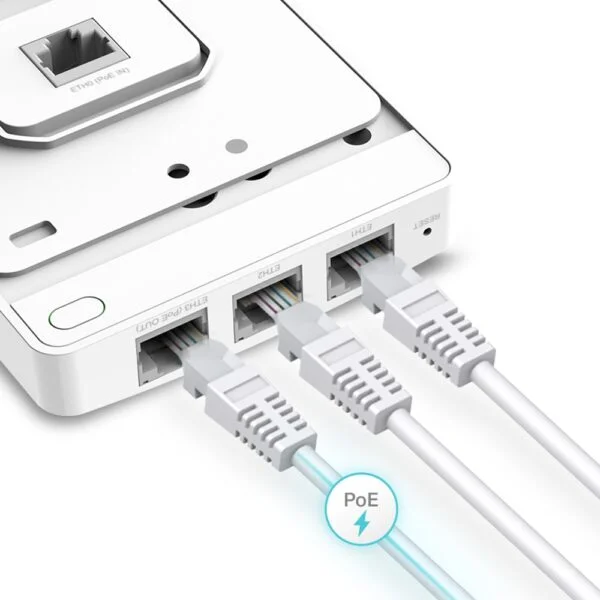

Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point HARDWARE FEATURES Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.) Physical Security Lock Yes Button Reset Power Supply 802.3af/802.3at PoE Max. Power Consumption 9.8 watts /24.4 watts (PoE Out Included) Dimensions ( W x D x H ) 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) Antenna 2 Dual-Band Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 4 dBi Mounting Wall Plate Mounting WIRELESS FEATURES Coverage 25㎡(300 ft²) Concurrent Clients 200+ Wireless Standards IEEE 802.11a/b/g/n/ac Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz: Up to 867 Mbps • 2.4 GHz: Up to 300 Mbps Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Band Steering • Beamforming • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Local LAN port based VLAN • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise Transmission Power • CE: ≤20 dBm (2.4 GHz, EIRP) ≤23 dBm (5 GHz, EIRP)• FCC: ≤21 dBm (2.4 GHz) ≤21 dBm (5 GHz) Management Features Omada App Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1,v2c System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller. OTHERS Certification CE, FCC, RoHS Package Content • Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall • Installation Guide • Mounting Screw System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
