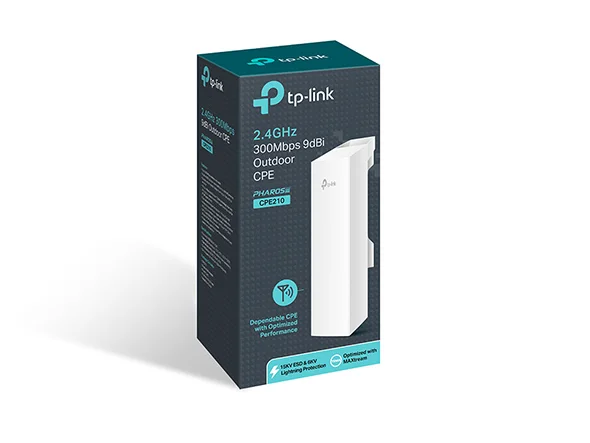

TP-Link CPE210 2.4GHz 300Mbps Wi-Fi Outdoor CPE, Dual-Polarized 9dBi Directional MIMO Antenna, Point-to-Multi-Point Connections

HARDWARE FEATURES Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc Memory 64MB DDR2 RAM, 8MB Flash Interface 1 10/100Mbps Shielded Ethernet Port (Passive PoE in) 1 Grounding Terminal 1 Reset Button Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC Max. Power Consumption 10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Dimensions ( W x D x H ) 8.8 x 3.1 x 2.4 in. Antenna Built-in 9dBi 2×2 Dual-polarized Directional Antenna Beam Width: 65° (H-Plane) / 35° (E-Plane) Protection 15KV ESD Protection 6KV Lightning Protection Enclosure Outdoor ASA stabilized plastic material IPX5 waterproof Certification WIRELESS FEATURES Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled) Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) Frequency 2.4~2.483GHz Transmission Power 27dBm/500mw (1dBm step adjustable) SOFTWARE FEATURES Wireless Configurations Pharos MAXtream TDMA Technology 802.11b/g/n modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation > Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Management Features Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server System Tools Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog POE ADAPTER FEATURES Dimensions(W x D x H) 4.3 x 2.2 x 1.3 in Interfaces 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) Button Remote Reset Button Power Status LEDs Green Input 100-240VAC, 50/60Hz Output 24VDC, 0.6A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Efficiency > 80% Certifications FCC OTHERS Certification FCC, RoHS, IPX5 Package Content Outdoor Wireless CPE 24VDC Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide Environment Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
