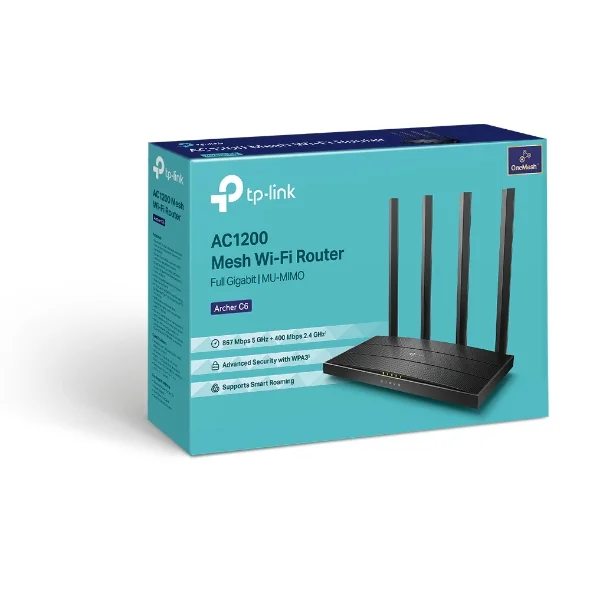

TP-Link Archer C6 AC1200 Wireless MU-MIMO Dual Band Router

Archer C6 AC1200 Wireless MU-MIMO Gigabit Router AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 400 Mbps at 2.4 GHz band MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance Boosted Coverage – Four external antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals Access Point Mode –Supports AP Mode to transform your wired connection into the wireless network Easy Setup – Set up your Wi-Fi in minutes with TP-Link Tether app. EasyMesh-Compatible – Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage WIRELESS Standards and Protocols Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz WiFi Speeds AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n) WiFi Range 3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range WiFi Capacity Medium Dual-Band Allocate devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Airtime Fairness Improves network efficiency by limiting excessive occupation Working Modes Router Mode Access Point Mode SECURITY Network Security SPI Firewall Access Control IP & MAC Binding Application Layer Gateway Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network WiFi Encryption WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) HARDWARE Ethernet Ports 1× Gigabit WAN Port 4× Gigabit LAN Ports Buttons WPS/Wi-Fi Button Power On/Off Button Reset Button Power 12 V ⎓ 1 A SOFTWARE Protocols IPv4 IPv6 OneMesh™ OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Parental Controls URL Filtering Time Controls WAN Types Dynamic IP Static IP PPPoE PPTP L2TP Quality of Service QoS by Device Cloud Service OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Port Forwarding Port Triggering DMZ UPnP IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link NO-IP DynDNS Management Features Tether App Webpage OTHER System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) Certifications FCC, CE, RoHS Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing TEST DATA WiFi Transmission Power CE EIRP: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm(2.4GHz & 5GHz) WiFi Reception Sensitivity 5GHz: 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm； 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm； PHYSICAL Dimensions (W×D×H) 8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm) Package Content Wi-Fi Router Archer C6 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
