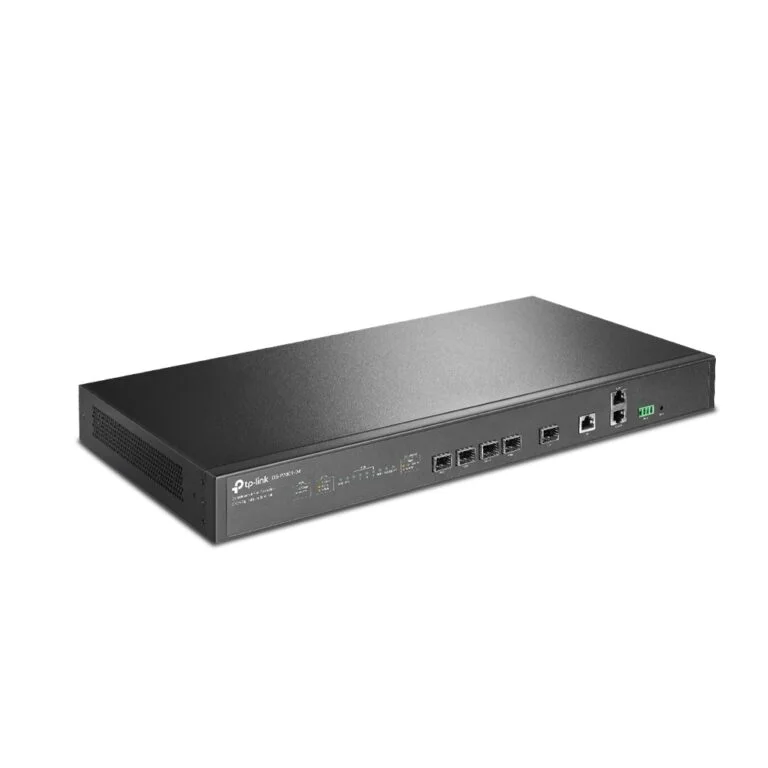

TP-Link 4 Port GPON OLT (DS-P7001-04) – Fully Loaded, L3, Dual Power, SFP PON

TP-Link 4 Port GPON OLT (DS-P7001-04) The TP-Link DS-P7001-04 is a carrier-class 4 Port GPON OLT designed for high-performance FTTH network deployments. With advanced Layer 2 & Layer 3 features, dual power supplies, and centralized management via DeltaStream PON Management System (DPMS), this compact OLT ensures both performance and reliability. Each GPON port supports a 1:128 splitting ratio, allowing the device to connect up to 512 ONUs. It features redundant AC and DC power supplies, guaranteeing non-stop operation and maximum uptime. Whether you’re a service provider or a system integrator, the DS-P7001-04 offers the perfect blend of performance, scalability, and ease of management for small to medium FTTH projects. Key Features 4 GPON Ports: Supports up to 512 ONTs (1:128 per port) High-Speed Uplinks: 1× 10GE SFP+ port and 1× Gigabit RJ45 uplink Carrier-Class Reliability: Built-in AC + DC dual redundant power supply L3 Capabilities: Supports Static Routing, IGMP Snooping, DHCP Relay, ACL, and more Centralized Management: Through DPMS, SNMP, CLI, and Web UI Security: ONU authentication, rogue ONU isolation, and uplink/downlink encryption QoS & VoIP Ready: IEEE 802.1p/DSCP QoS, Voice VLAN, Auto VoIP Specifications: 4 Port GPON OLT Feature Details GPON Ports 4× SC/UPC (2.5 Gbps down / 1.25 Gbps up) Splitting Ratio 1:128 per port (max 512 ONTs per device) Transmission Distance Up to 20 km Uplink Ports 1× 10G SFP+, 1× 1G RJ45 Management Ports 1× RJ45 Console, 1× RJ45 MGMT, 1× Alarm (reserved) Power Supply Dual Power: AC (100–240V) & DC (-38.4V to -72V) Max Power Consumption 58W Dimensions 440 × 180 × 44 mm Operating Temperature 0°C to 50°C Storage Temperature -40°C to 70°C Humidity 10%–90% (non-condensing) Software Features Security: ACL, 802.1X, ARP Inspection, IP Source Guard DHCP: Server, Relay OMCI Management: Standard compliant ONU Management: Auto authentication, rogue ONU isolation Multicast: IGMP Snooping, MLD Snooping Routing: Static Routing QoS: IEEE 802.1p/DSCP, Voice VLAN, Auto VoIP Multi-Service: Traffic identification and rate limiting Centralized Management: Device batch config, upgrade, monitoring via DPMS
