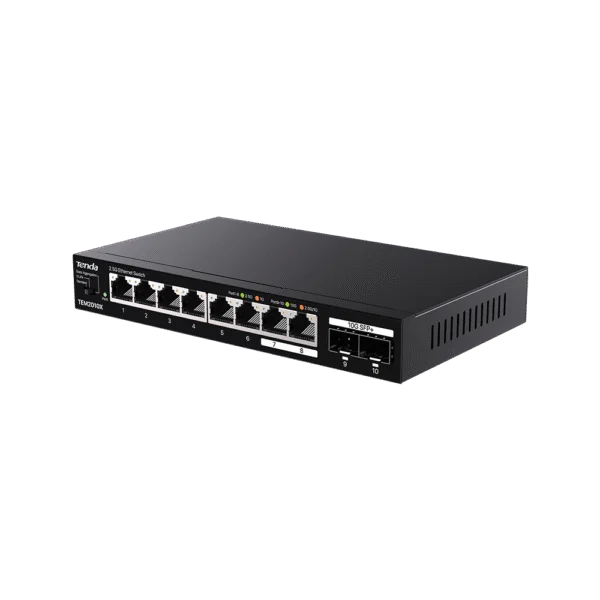

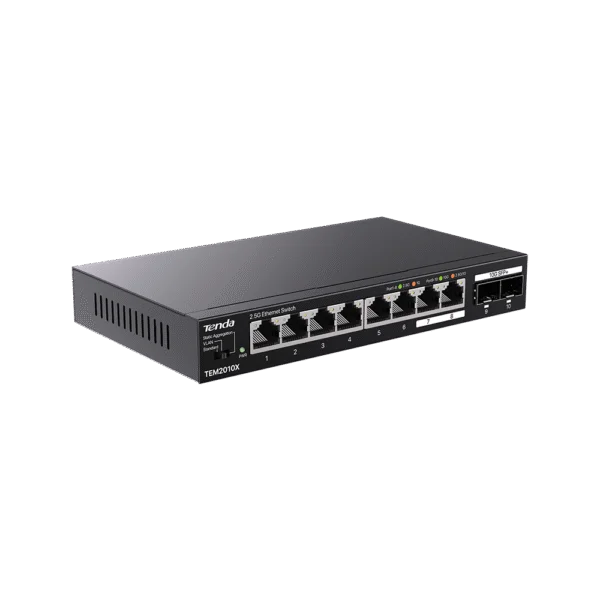

Tenda TEM2010X 8-Port 2.5G Ethernet Switch With 2*10G SFP+ Slots

TEM2010X 8-Port 2.5G Ethernet Switch With 2*10G SFP+ Slots Network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz，IEEE 802.3cb LED Indicator Two Link/Act LED indicators for each port One Power LED indicator for each device Interfaces 8*100/1000/2500 Mbps Base-TX Ethernet ports 2*100/1000/2500 Mbps Base-X SFP ports Transmission media Ethernet: CAT3 UTP or better Fast Ethernet: CAT5 UTP or better Gigabit Ethernet: CAT5e UTP or better Dimensions 220mm*135.6mm*31.5mm Material Metal Level of protection Lightning protection for port: 6 kV Electrostatic protection: -Air discharge: ±8 kV -Contact discharge: ±6 kV Forwarding mode Store-and-forward Switch capacity 50Gbps Forwarding rate 37.2 Mpps MAC address table 16K Power method Input: 100 – 240V AC 50/60Hz Output: 12V 2A Power consumption Max: <24W Mounting Desktop mounting: Support Wall mounting: Support Rack mounting: Not Support Environment Operating temperature: 0°C – 45°C Storage temperature: -40°C – 70°C Operating humidity: (10% – 90%)RH, non-condensing Storage humidity: (5% – 90%)RH, non-condensing Certifications CCC, FCC, CE, RoHS Funtions 1. Standard: In this mode, all ports can communicate with each other. 2. VLAN: Ports 1-6 are isolated from each other, but can communicate with ports 7-10 3. Static Aggregation: Group 1: 7-8 Group 2: 9-10. For dual-port 2.5G NAS, up to 5 Gbps Protocols Auto-learning and Auto-Updating MAC address learning CDMA/CD
