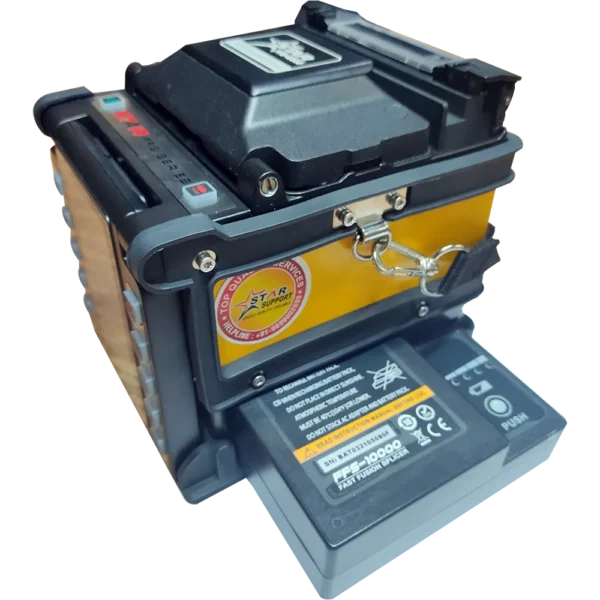

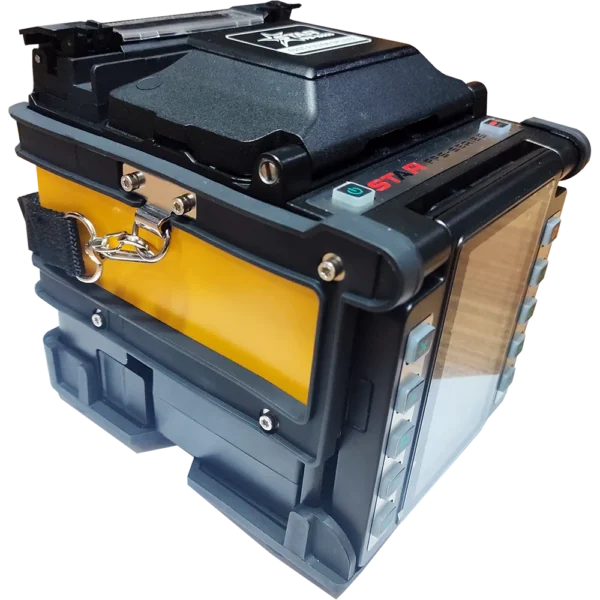

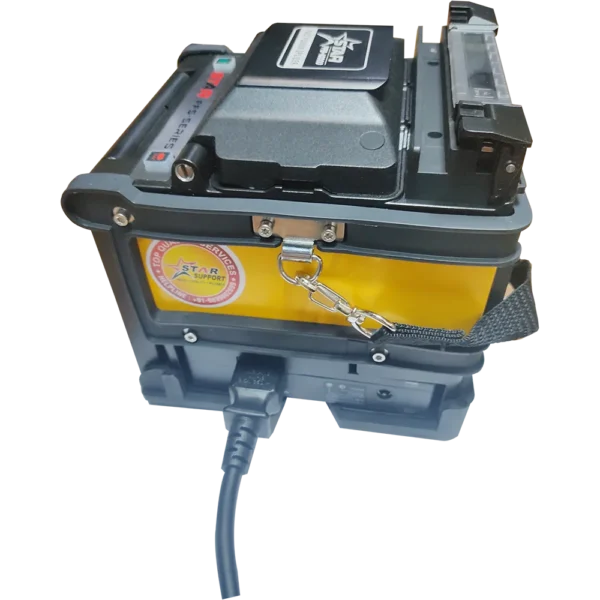

STAR FFS-10000 Fusion Splicing Machine (CORE TO CORE)

The Star FFS 10000 is a fully powerful, core alignment fusion splicer that produces consistent, low loss splices. It provides you with the ability to work faster and with more precision . It includes a slew of new and improved features that were created with the goal of allowing the user to work faster and with greater precision. Fusion splicing machines come in a variety of styles that are currently on the market. While almost all splicing machines are designed to perform the fusion splicing process in the same way, there are differences in specifications that go beyond just technical features and include things like hardware and software features as well. Yes, we are referring to elegance as a quality. The cost of the best splicing machine, which carries sophisticated hardware and software to deal with on-site solutions during pre and post-implementation of fiber optic cable networks for telecom operators, internet service providers (ISPs), cable TV digitization, and CCTV, is another key feature that many buyers look for. Description Some manufacturers develop splicing machines specially to perform the fusion splicing process, while other manufacturers develop splicing machines specifically targeted to facilitate the fiber rectification team’s on-site transportation of the equipment and the correction of any errors or faults in the fiber cable network. This machine is specifically created to handle the ‘back to back’ splicing process. Before releasing the best fusion splicer, the Star FFS-10000 Fusion Splicer Model, the India-based manufacturer Star developed a prototype and conducted research and analysis in real-world scenarios. For many years, the company adhered to a step-by-step research process for the life cycle of product development. Because of the speed, flexibility and accuracy of the Star FFS-10000 Fusion Splicer, splicing teams can be confident in their work and have more time to focus on other network issues while they perform splicing tasks. Standard Package 1 Optical fiber fusion splicer 1 Power Adapter 1 Car Cigarette Lighter Charging Cable 1 Pair Spare Electrodes 1 Cooling Tray 1 Three Hold Stripper 1 Optical Fiber Holders 1 Fiber Cleaver 1 Carrying Case 1 Power Meter product specification General Size and Weight D190 x W140 x H150 (MM)1.8 kg (2.2kg with battery) Fiber Alignment 6 motors core alignment Fiber Type SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657) Splice Mode Single Fiber Fiber Diameter Cladding diameter 80-150 µm, coating 100-1000µm Cleave Length 250µm cladding diameter 8-16mm, over 250 µm cladding diameter 16mm Splicing Programs Max. 100 Splicing Cycle Time 6 sec. [SM Fast] program. 10 sec. [SM Fast] program. Heating Programs Max. 30 Heating Cycle Time Adjustable, 12 sec. typical Splice Protector 10 – 60mm Splice Image Capture Max.100 Splice Data Storage Max. 3000 Splice Loss SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB Return Loss 60dB Loss Estimation Provided Operating Condition Altitude 0-5000m, Humidity 0-95% Temperature -20-+50 °C, Wind velocity up to 15m/s Storage Condition Humidity 0-95%, Temperature -40-+80°C Tension 1.96 – 2.25N Fiber View Two cameras observation. 4.1 inch high-light color screen Fiber Magnification 560 x for X or Y single axis view. 180x for both X&Y dual axis view Port High-speed USB Electrode Life 5000 arc discharges Power Supply AC 100-240V, 50/60Hz Battery Module 8400mAh High capacity battery, more than 350 times splicing and heating
