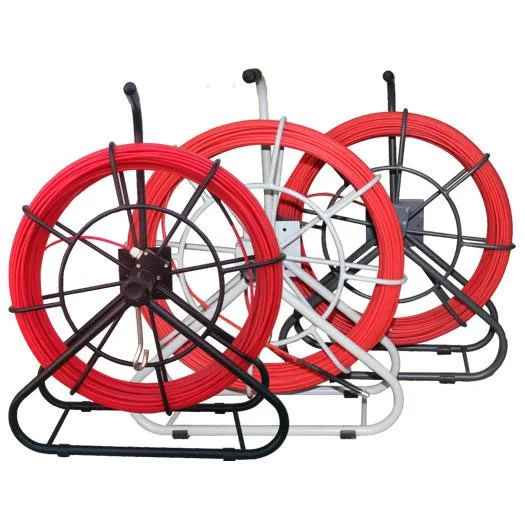

Stanlay MTRAK Traceable Midi Duct Rodder

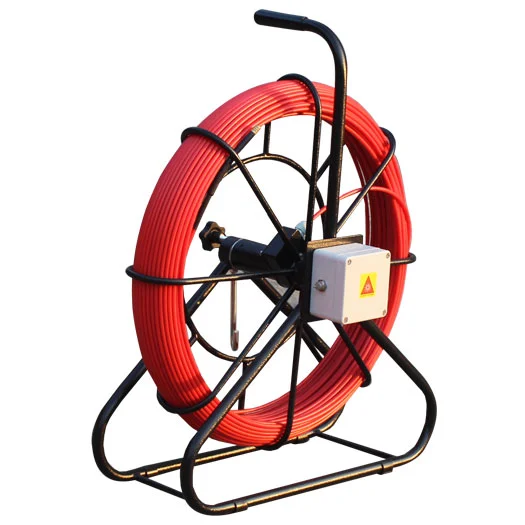

Based on a 5.5mm composite fiberglass rod with 3 x 0.5mm tracer copper wires. The midi traceable duct rodder contains an all new slip ring design allowing the rod to be pushed in while tracing of the pipe is being done. Provided in a galvanized metal tube frame to enable usage of either of the copper tracer wires for tracing route of the buried duct or the Sonde end tip of the rodder. The base of the traceable rodder contains a terminal box that provides 2 individual terminal connections to the 2 inbuilt copper tracer wires of the traceable duct rodder. Connecting both terminals from the two wires of a transmitter at 33 KHz causes the Sonde tip of the rod to be energized at 33 kHz Specification: Rod Length Options 50m (164’) / 80m (263’) Rod Diameter 5.5mm nominal (0.21”) Rod Material/Colour Composite fiberglass rod with three integrated copper wires / Red Rod minimum bend radius 10cm (reducing to 15cm, 5cm from tip) Tracer diameter (Built in) 3 x 0.5mm Cu wires Transmitting sonde diameter 19.0mm Tip material Brass Dimension (LWH) 48 x 28 x 58 cms Frame 8 Spoke design powder coated 16mm steel tube Weight 7.5kg Terminal box 1 or 2 terminal connection (IP65 rated) Slip ring assembly Built in Frequency Optimised for 33kHz Detection depth range Line detection 0-3m depending on locator and site conditions Operating/Storage Temperature -20 C to +50 C Compatibility Use any signal transmitter with 33kHz signal to energize sonde tip Tracer Rod & Tip/Terminal Box IP68/IP54
