Stanlay CTRAK Traceable Duct Rodder

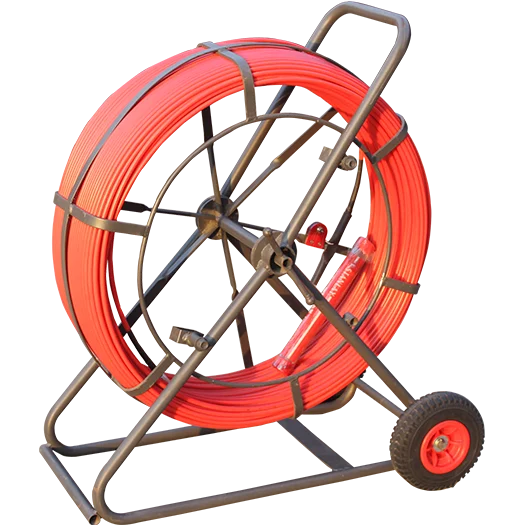

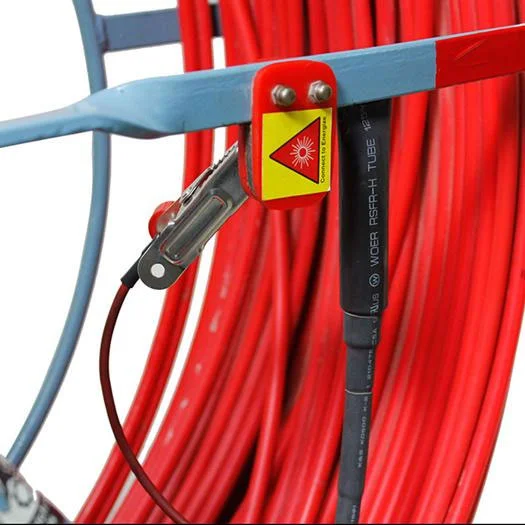

The PipeTraker Traceable Maxi Duct rodder is based on a sturdy composite fiberglass rod of 9mm dia with a built in 1mm copper wire that is rigid yet flexible enough to guide into nonmetallic HDPE ducts, plastic pipes and metal pipes up to lengths of 300 meters / 1000 feet. The CTRAK traceable duct rodder is provided in a galvanized metal tube frame with an integral brake and wheels. The base of the traceable rod contains a terminal that provides a connection to the inbuilt copper tracer wire of the duct rodder. The traceable rodder when energized with a frequency excites the full length of the rodder to enable trace the buried pipe. Use any Digital Pipe & cable locating receiver to trace the route of the Pipe. Available in two length options: 200m/650feet and 300m/1000feet. See the CTRAK Product video for an animated description of how to use the CTRAK traceable rodder to trace nonmetallic pipes. Length Options 150m, 200m, or 300m Dimension 33″x20″x37″ Maxi Frame “B” Type for 120~200m 43″x20″x44″ Super Maxi Frame “A” Type for 300 m frame Rod Dia 9.0mm (Nominal) Size of Copper Wire 1mm Dia. Item Code ST-CTRAK 150 for 150m, ST-CTRAK 200 for 200m & ST-CTRAK 300 for 300m.
