Stanlay OTDR APL Advanced OTDR range up to 45 dB

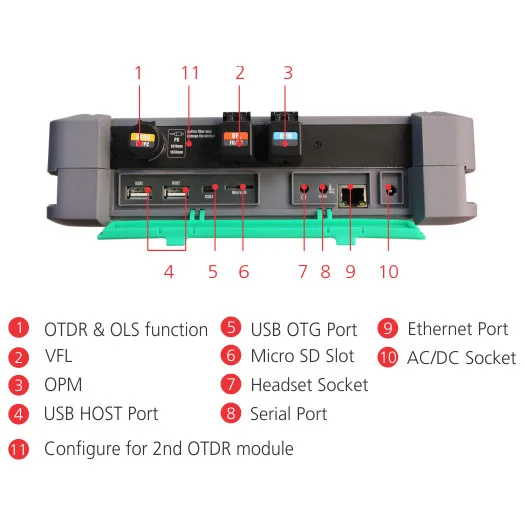

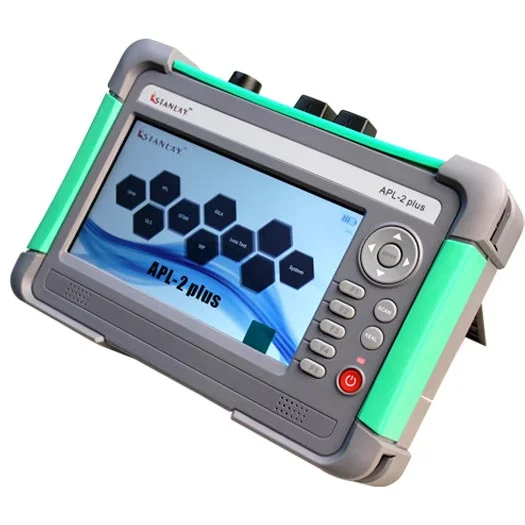

Stanlay APL-2+ 7 inch Multi Touch Screen Optical Time Domain Reflectometer APL2+ OTDR APL 2 Plus OTDR is a multi touch screen platform OTDR, feature rich with built in optical light source, optical power meter & visual fault locator, for testing of terrestrial, long distance or datacom optical fiber networks. APL 2 Plus is available in Single mode, Multimode and PON model variant with the option to customize the OTDR for availability of up to 5 wavelengths (by configuring up to 2 distinct OTDR modules in the same OTDR unit). APL 2 Plus offers 40 dB, 43 dB & 45 dB dynamic range options for long distance terrestrial fiber network testing. Brand Stanlay Touch Screen 7-inch colour LCD,Multi-touch screen Model APL-2 Connector FC/PC (850/1300/1310/1550),FC/APC (1625) interchangeable adapter or customize Pulse Width 5ns,10ns,25ns,50ns,100ns,250ns,500ns,1us,2.5us,5us,10us,20us Attenuation Dead Zone 4.0 m Event Dead Zone 1.5 m Min Distance Resolution 0.1 m Loss Resolution 0.001 dB Distance Uncertainty +-(0.8+0.005% x Testing Distance + Resolution) OPM Function T+8~-70dBm or C+26~-50dBm,850/1300/1310/1490/1550/1625nm,FC or SC adapter VFL Function 1 mW Storage >10000 results Battery 7.4V/4.6AH Rechargeable lithium-ion batteries Dimension 246.5mm x 173.5mm x 70mm Weight About 1.55 kg Storage Temperature -20 to +60 deg C,< 90%RH Operation Temperature -10 to +50 deg C,< 90%RH APL-2 Optical time Domain Reflectometer is color multi-touch screen platform OTDR with inbuilt standard optical power meter and visual fault locator. APL-2 can measure the length to a fault or the length of single mode and multimode fiber optic cables, also can test through splitter. Features: Built-in VFL and OPM 7-inch color LCD, Multi-touch screen Multi-wavelength testing and display User-friendly OTDR simulation software shows details of events Max. 5 wavelengths, 850nm/1300nm/1310nm/1550nm/1625nm Input laser signal auto detection and self-protection function
