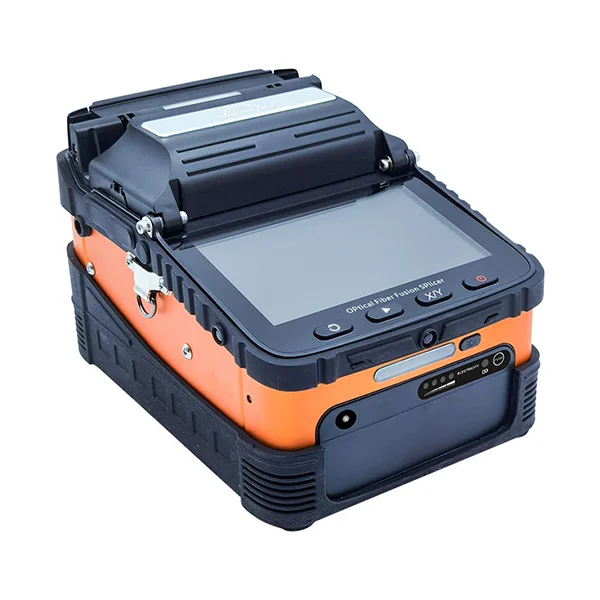

Signal Fire AI-5 AI Fusion Splicer – Fully Automatic, 5200mAh Battery, GPS & Bluetooth

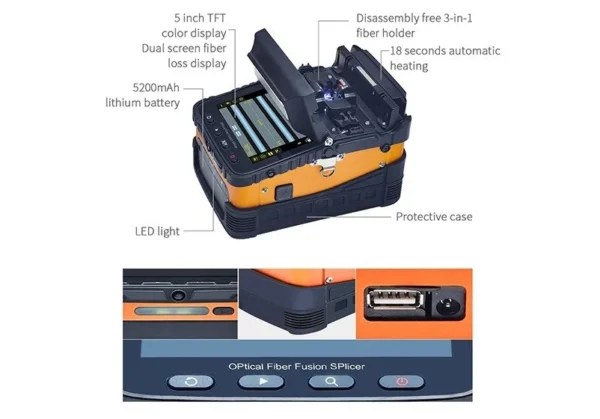

Signal Fire AI-5 Optical Fiber Fusion Splicer The Signal Fire AI-5 Fusion Splicer is a next-gen, AI-powered fiber splicing machine, engineered for both professionals and newcomers. Thanks to its intelligent auto-alignment system, 4 high-precision motors, and 320x magnification, it delivers fast and accurate splicing within just 8 seconds. Moreover, it features a 5-inch color screen, intuitive interface, and durable metal body that withstands dust, water, and shock. With Bluetooth and GPS support, real-time monitoring and location-based operations become effortless. The 5200mAh battery ensures up to 160 splicing cycles per charge, ideal for fieldwork. Additionally, the companion mobile app allows you to manage, update, and operate the splicer remotely. Whether you’re working on security systems, telecom lines, or enterprise networking, the Signal Fire AI-5 Fusion Splicer delivers unbeatable performance and reliability — all at the lowest guaranteed price in India. Specifications – Signal Fire AI-5 Specification Details Brand Signal Fire Model AI-5 Function Type Fully Automatic (AI-Based), Manual Option Also Available Usage/Application Optical Fiber Splicing Splicing Type Clad/Clad and Core/Core Fiber Alignment Core/Cladding Motor Count 4 Motors (0.5μm accuracy) Splicing Time 8 Seconds Heating Time 18 Seconds (Adjustable) Battery Capacity 5200mAh Lithium-ion (Up to 160 cores per charge) Charging Time ≤ 3.5 Hours Internal Storage 1,000 Local Sets + Unlimited Cloud Storage Screen 5-inch TFT Color Display Magnification 320X (Single Axis), 160X (Dual Axis) Applicable Fibers SMF, MMF, BIF, Drop Cable, Tail Fiber, Invisible Fiber Fiber Diameter Cladding: 80150μm; Coating: 1001000μm Fiber Cleave Length 8–16mm (<250μm); 16mm (250–1000μm) Splicing Loss 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS) Fiber Holder 3-in-1 Holder (250μm, 900μm, 2mm/3mm/Flat Drop Cable) Heat Shrink Tube Sizes 25mm, 40mm, 50mm, 60mm Tension Test Standard 2N Return Loss >60dB Protection Waterproof, Dustproof, Shockproof Drop Resistance Up to 1.5 Meters Body Material Full Metal (Designed in Japan) Bluetooth Yes (v4.2, 60m Range) GPS Yes (Real-time Latitude/Longitude) Mobile App Yes (iOS & Android) Software Upgrade Via Mobile App, Bluetooth Sync USB Port Type-A – Supports Mobile Charging & External LED Power Input 100–240V AC, 50/60Hz Power Output 13.5V DC / 4.8A Operating Temperature -15°C to +50°C Humidity Tolerance 0–95% RH Altitude Range 0–5000 meters Wind Resistance ≤ 15m/s Boot Time 1 Second Wireless Communication Bluetooth 4.2 (2.4GHz, Up to 60m) Remote Management Yes – Welding Log, Usage, Time Tracking via App Importer (India) Exclusively Imported by FASTBALL PAN India Support North, South, East, West (Distributors in Delhi, Mumbai, Kolkata, etc.) Competitor Claim World’s First AI Fusion Splicer – No Competition in this Category
