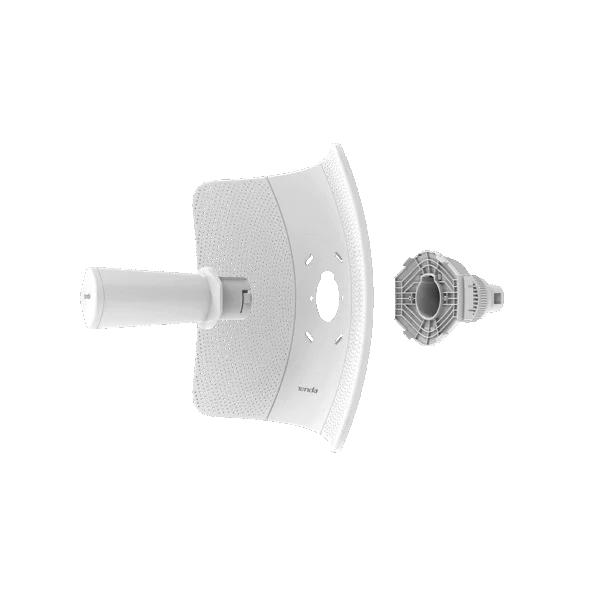

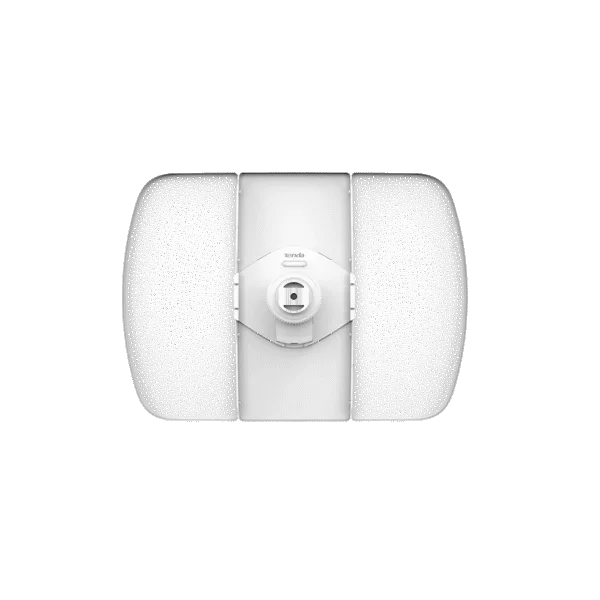

Outdoor Access Point (CPE) Tenda O8 1-pack

O8 1-pack 5GHz 23dBi 11ac Outdoor CPE O8 5GHz 23dBi 11ac Outdoor CPE is designed to PtP and PtMP solutions for private ISP wireless connectivity, CCTV surveillance and data transmission. It features with 23dBi directional vertical polarization antenna to provide an efficient way to pick up and maintain a stable long-distance connectivity up to 20km. Adopt of auto-bridging technology, two CPE can connect to each other automatically to make it easy to setup. Model O8 Dimension 391.5*280*223mm Deployment Pole Mount Application Scenarios PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance Frequency Range 5GHz Compliant Standards IEEE 802.11a/n/ac Private TDMA Protocol TD-MAX Maximum Wireless Rate 433Mbps Interfaces 1*10/100Mbps Ethernet Port Antenna Polarization Vertical Polarization Antennas Gain 23dBi Antenna Beamwidth Vertical: 10° Elevation: 10° GND / Reset Button 1 Power Consumption 5.5W Waterproof Level IP65 LED Indicator PoE/LAN,LED1,LED2,LED3 Power Method 12V1A Passive PoE Lightning Protection 6000V Passive PoE Passive power over ethenet via PoE/LAN(✚4,5pins,-7,8pins ) Voltage range: 9-35V DC Reception Sensitivity 11a 6Mbps -95dBm±1.5dBm 11n MCS7 HT20 -72dBm±1.5dBm 11ac MCS9 HT80 -64dBm±1.5dBm TDMA Support Operating mode AP/Station/WISP/P2MP/WDS Repeater/Router Enable/Disable Wireless Radio Support SSID Hidden Support Wireless Client isolation Support SSID Isolation Support Channel Bandwidth 20/40/80MHz Channel Shift Support Wireless Access Control Support Weak Signal Client Limitation Support Transmission Power Adjustable power by 1dBm WMM Capable Support APSD Capable Support Wireless Security 64/128 WEP,WPA-PSK,WPA2-PSK,WPA Transparent Bridge Support VLAN Tagging for SSID Support DHCP Server Support VPN Pass-Through PPTP,L2TP Remote Web access Support Schedule Reboot Support Page Timeout Support Ping Watchdog Support Dyndns noip, dyndns.org Network Diagnoses Ping, Traceroute, Signal Scan Time and Date Setting Support Firmware upgrade Support Backup/Restore Configuration Support Username Managerment Support System Logs Support Managed By Controller PC Software — CPE Assistant Package Contents 1*5GHz 23dBi 11ac Outdoor CPE O8 1*Power Adapter 1*PoE Injector 1*Quick Installation Guide Operation Temperature -30℃ ~ 60℃ Storage Temperature -40℃ ~ 70℃ Operating Humidity 10%~90% non-condensing Storage Humidity 10%~90% non-condensing Default login IP 192.168.2.1 Default Login Username admin Default Login Password admin Certification FCC/CE/RoHS
