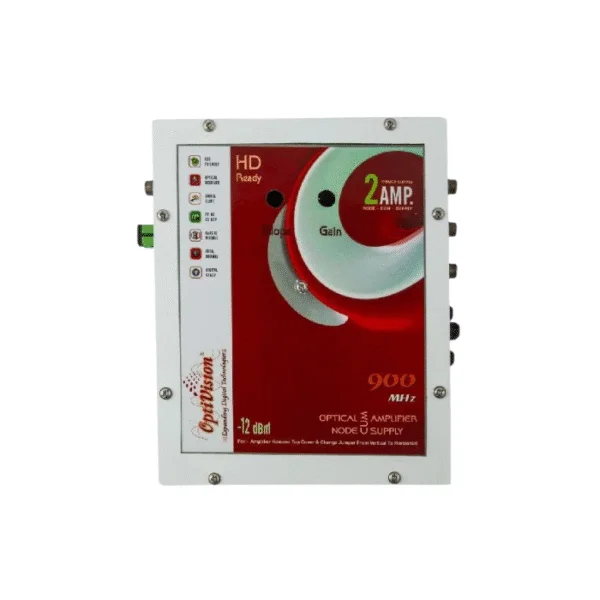

Optivision Optical Node Cum Power Supply 6061

Optical Node Cum Power Supply Business Type Manufacturer, Exporter, Supplier, Retailer, Trader, Importer Type Optical Node Material Metal Color White Frequency 50Hz, 60Hz Driven Type Electric Network Double, Single Optical Input 0-12 VDC, 12-24 VDC Brand Name Optivision Optivision Model no.6061 is an Aluminium optical Node cum power supply with dual benefit inbuilt 2.5Amp. power Supply with short circuit & overload protection as supply part. This Optical receiver with high-output, high-performance, full-featured CATV optical node designed around the very latest optical receiver technology to reliably deliver a full performance of multiplexed video. This unit is constructed with high-quality components to enable it to meet or exceed its performance specifications over a wide temperature range in an un-control environment. The unit has Aluminium Extrusion housing for rust-free & good heat dissipation. Specifications :- Wavelength:1200nm-1600nm RF output level: 108dB Optical input : -5dbm to -16dbm Gain: 30dB Slope: 20db Attenuation: 20dB Power pass: 30V – 60VAC Mains : 180V – 240VAC Frequency: 40-900MHz OPM: LED Display Supply Out: 60V – 2.5A
