Optivision 4 PON Port Layer3 EPON OLT Fully Loaded (OV-EO-04)

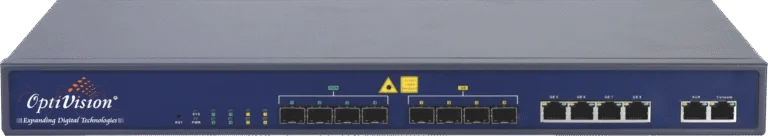

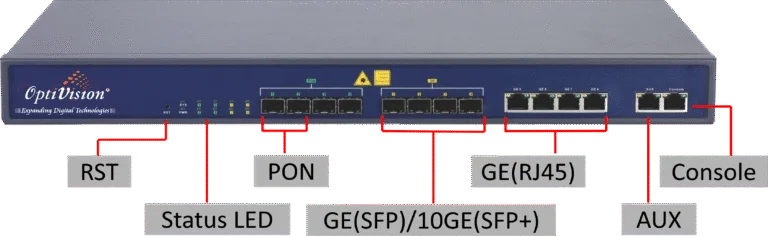

EPON OLT Optivision 4 PON Port Layer3 Fully Loaded OV-EO-04 The Optivision EPON OLT OV-EO-04 is a compact 1U device designed for reliable and scalable fiber network deployments. Built on a mainstream chip scheme, it is compatible with any ONU brand. Ideal for ISPs and enterprises. With 4 PON ports and Layer3 functionality, this EPON OLT supports advanced features like VLANs, QoS, IGMP snooping, and static/dynamic routing. It meets IEEE802.3ah and all EPON standards, ensuring seamless integration in modern networks. For management, the OV-EO-04 supports SNMP, Telnet, CLI, Web, and SSH, providing multiple configuration options. Its robust software allows for port monitoring, ONU management, user control, and alarm functions. The system also includes advanced security with IPv6 support, ACLs, DHCPv6, and SLAAC snooping. Multicast features such as IGMP snooping with support for 256 IP multicast groups enhance performance for IPTV and enterprise services. With a dual power supply, flexible management modes, and Layer2/Layer3 switching capabilities, the Optivision OV-EO-04 EPON OLT delivers high efficiency, stability, and scalability for fiber optic networks. Specifications: Feature Details Model OV-EO-04 Type EPON OLT (Layer3) PON Ports 4 Design 1U Compact, Dual Power Supply Chipset Mainstream Chip Scheme ONU Compatibility Open to any ONU brand Standards IEEE802.3ah, EPON Standards Management Modes SNMP, Telnet, CLI, Web, SSH v1/v2 Layer2 Features 16K MAC, 4096 VLANs, VLAN tag/Untag, QinQ, RSTP, MSTP, QoS, Port Isolation Layer3 Features Static Route, RIP v1/v2, RIPng, Optional OSPF v2/v3, PPPoE/PPPoE+ Multicast IGMP Snooping, 256 Multicast Groups Security IPv6 ACL, DHCPv6, SLAAC, Neighbor Discovery, SSH, HTTPS Applications ISP Networks, Enterprises, IPTV, FTTx Deployments
