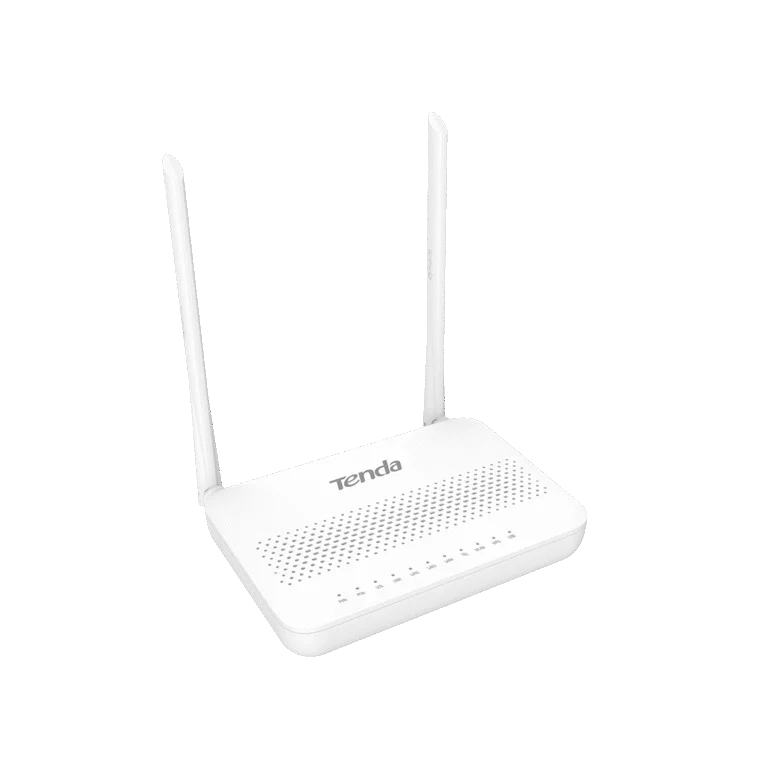

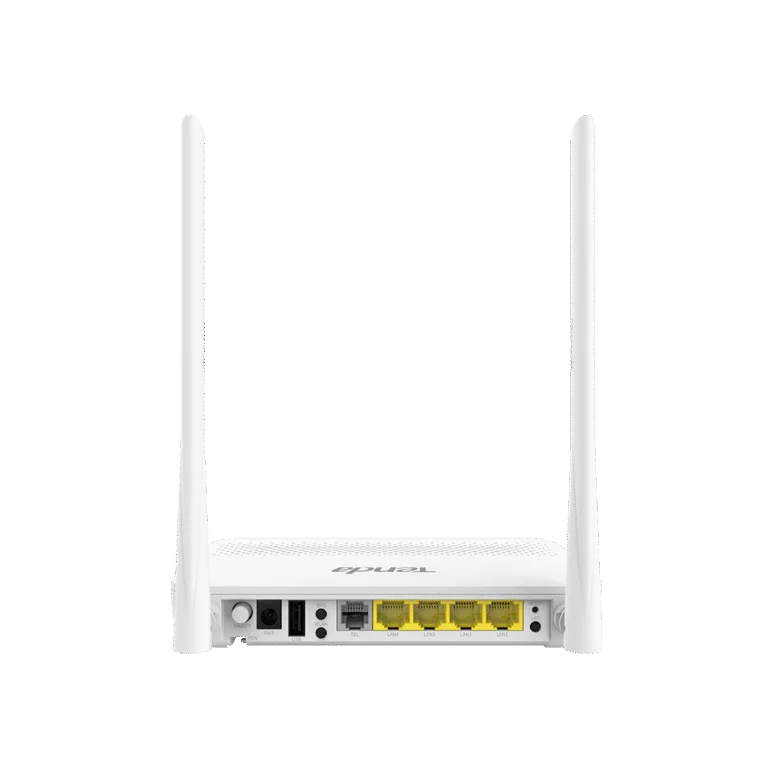

ONT Tenda HG6 N300 Wi-Fi GPON ONT Router

HG6 N300 Wi-Fi GPON ONT Router IEEE Standards IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z PON Standards ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4 Interfaces 1*SC/APC GPON Port, 1*1000Mbps RJ45 LAN Port, 3*100Mbps RJ45 LAN Ports, 1*USB Port, 1*VoIP Port, 1*DC Port LED Indicator PWR, PON, LOS, LAN1, LAN2，LAN3, LAN4, TEL,WLAN, WPS, USB Button 1* Power On/Off Button, 1*WPS Button, 1*WLAN Button, 1 RESET Button ，1*LED Button Optical Mode Class B+ Optical Wavelength Transmit at 1310nm, Receive at 1490nm Transmission Distance 20km Max Bandwidth Upstream 1.25Gbps Max, Downstream 2.5Gbps Max Dimension 163*115*28 mm (W * D * H) TX Power 0.5~5dBm RX Power -28~-8dBm External Power Supply DC 12V /1.0A Power Consumption ≤12w DHCP Server Server, Client, DHCP Client List, Address Reservation, DHCP Relay WAN Connection PPPoE , Dynamic IP, Static IP, Bridge Business Type TR069, Internet, IPTV, VoIP Quality Of Service Bandwidth Control IP Version IPv4, IPv6 Services DHCP, Dynamic DNS , IGMP Proxy UPnP, Samba VPN Pass-through PPTP, L2TP, IPsec Pass-through Firewall ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding， DMZ IPv6 Radvd, DHCPv6, MLD Proxy, MLD Snooping Diagnostics Ping, Ping6, Tracert, Tracert6 TR069 ACS, Connection request VoIP Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan , Codec, Hotline, DND, Alarm Frequency 2.4GHz，IEEE802.11 b/g/n Bandwidth 20M/40M Channel Range CH1-CH13 Antenna 2 * 6 dBi Antenna Easy Client Setup WPS Button, WPS LED Speed 11n 300M Transmission Power <20 dBm(EIRP) Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering SSIDs Main SSID 4 Guest SSIDs Max Terminal Linked 32 Operation Temperature 0°c ~ 45°c Storage Temperature -40°c ~ 70°c Operating Humidity 10% ~ 90% （Non-condensing） Storage Humidity 5% ~ 90% (Non-condensing) Package Contents 1*HG6,1* Power adapter, 1* Quick install guide, 1* RJ45 cable, 1* RJ11 cable Certification CE, FCC, RoHS, Anatel
