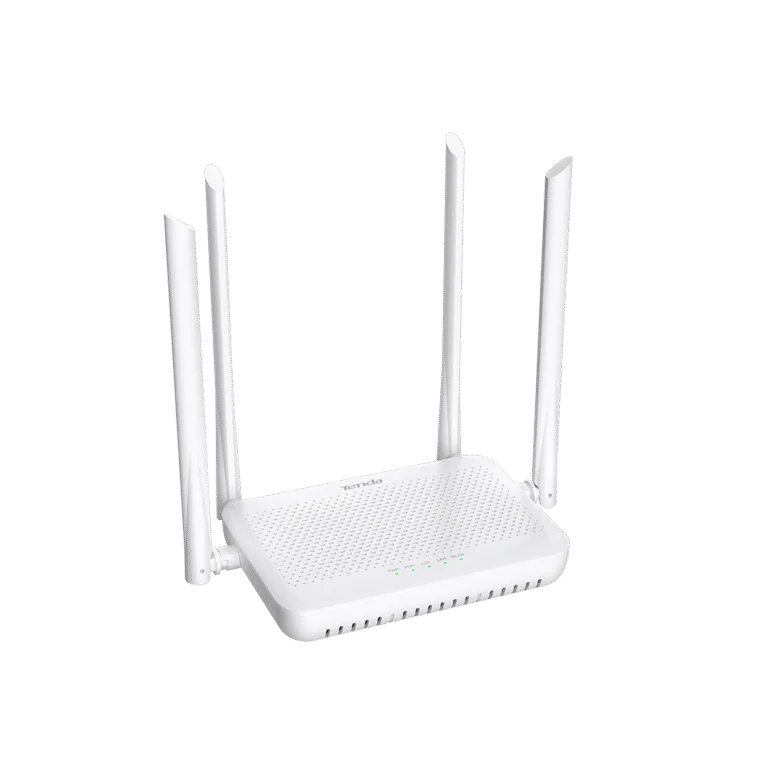

ONT HG10C AC1200 Dualband Wi-Fi xPON ONT

HG10C AC1200 Dualband Wi-Fi xPON ONT IEEE Standards IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z PON Standards GPON：ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4 EPON：IEEE 802.3 ah Interfaces 1 *SC/APC or SC/UPC （optional）Port 4 *1000Mbps RJ45 LAN Ports 1 *DC Power LED Indicator PWR, PON, LOS, LAN, WLAN Button 1 *WPS/RST Button Optical Mode Class B+ Optical Wavelength Transmit at 1310nm Receive at 1490nm Transmission Distance 20km Max Bandwidth GPON: Upstream 1.244Gbps Max, Downstream 2.488Gbps Max EPON: Upstream 1.244Gbps Max, Downstream 1.244Gbps Max Dimension 220.8×141.9×31mm（L×W×H) TX Power 0.5~5dBm RX Power -28~-8dBm External Power Supply DC 12V /1.0A Power Consumption ≤12w DHCP Server Server, Client, DHCP Client List, Address Reservation, DHCP Relay WAN Connection PPPoE , Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection Business Type TR069, Internet, IPTV Quality Of Service Bandwidth Control IP Version IPv4, IPv6 Services DHCP, Dynamic DNS , IGMP Proxy UPnP, MU-MIMO, QOS, Preset, Easymesh VPN Pass-through PPTP, L2TP, Ipsec Pass-through Firewall ALG, IP Filter , Port Filter, Mac Filter, URL Filter Port Forwarding, DMZ, DDOS IPv6 Radvd, DHCPv6, MLD Proxy, MLD Snooping Diagnostics Ping, Ping6, Tracert, Tracert6 TR069 ACS, Connection request VoIP / Frequency 2.4GHz & 5GHz Bandwidth 2.4G :20M/40M 5G: 20M/40M/80M Channel Range 2.4G : CH1-CH13 5 G : CH36-CH48, CH149-CH165 Antenna 4 * 5 dBi Antenna Easy Client Setup WPS Speed 11n 300M + 11ac 867M Transmission Power 2.4G: <20 dBm(EIRP) 5G: <23dBm(EIRP) Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering SSIDs Main SSID at 2.4GHz and 5GHz 4 Guest SSIDs Both At 2.4GHz and 5GHz Max Terminal Linked 32 at both 2.4GHz and 5GHz Operation Temperature 0°c ~ 45°c Storage Temperature -40°c ~ 70°c Operating Humidity 10% ~ 95% （Non-condensing） Storage Humidity 5% ~ 90% (Non-condensing) Package Contents 1*HG10C, 1* Power adapter, 1* User manual, 1* RJ45 cable Certification CE，RoHS，Anatel
