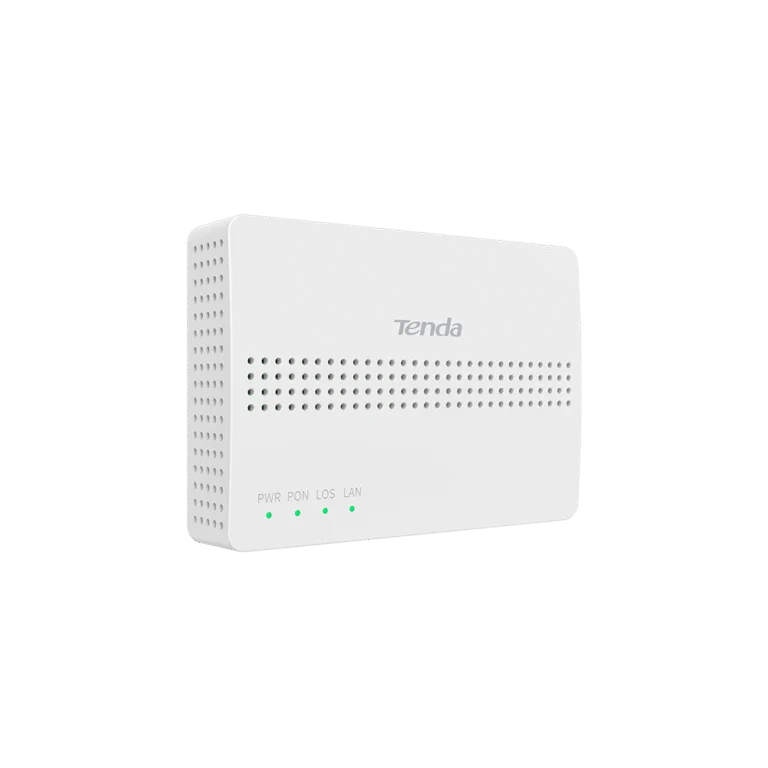

ONT Tenda HG1 v3.0 Single Port XPON ONT

HG1 v3.0 Single Port XPON ONT PON Standards ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4 Interfaces 1*SC/APC XPON Port, 1*1000Mbps RJ45 LAN Port, 1*DC Port LED Indicator LAN，LOS，PON，PWR Button 1 RESET Button Optical Mode Class B+ Optical Wavelength Transmit at 1310nm, Receive at 1490nm Transmission Distance 20km Max Bandwidth Upstream 1.25Gbps Max, Downstream 2.5Gbps Max Dimension 59*57*23mm(W*D*H) TX Power 0.5~5dBm RX Power -28~-8dBm External Power Supply DC 9V /0.6A Power Consumption ≤5.4w DHCP Server Server, Client, DHCP Client List, Address Reservation, DHCP Relay WAN Connection PPPoE , Dynamic IP, Static IP, Bridge Business Type Internet IP Version IPv4, IPv6 Services DHCP, Dynamic DNS Firewall ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding， DMZ IPv6 Radvd, DHCPv6, MLD Proxy, MLD Snooping Diagnostics Ping, Ping6, Tracert, Tracert6 Operation Temperature 0°c ~ 45°c Storage Temperature -40°c ~ 70°c Operating Humidity 10% ~ 90% （Non-condensing） Storage Humidity 5% ~ 90% (Non-condensing) Package Contents 1*HG1,1* Power adapter,1* Quick install guide Certification CE, FCC, RoHS, Anatel
