NVR TP-Link VIGI NVR4032H 32 Channel Network Video Recorder with 4 SATA

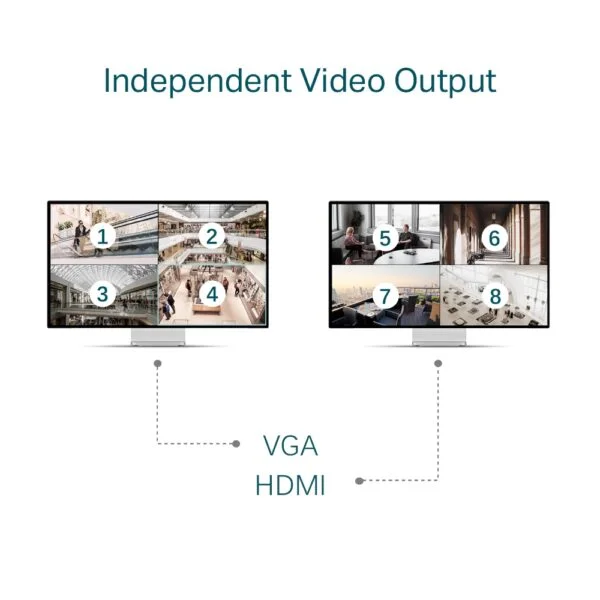

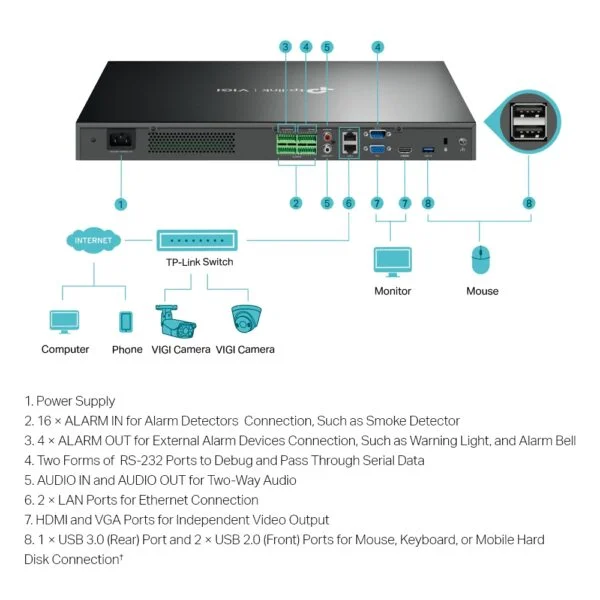

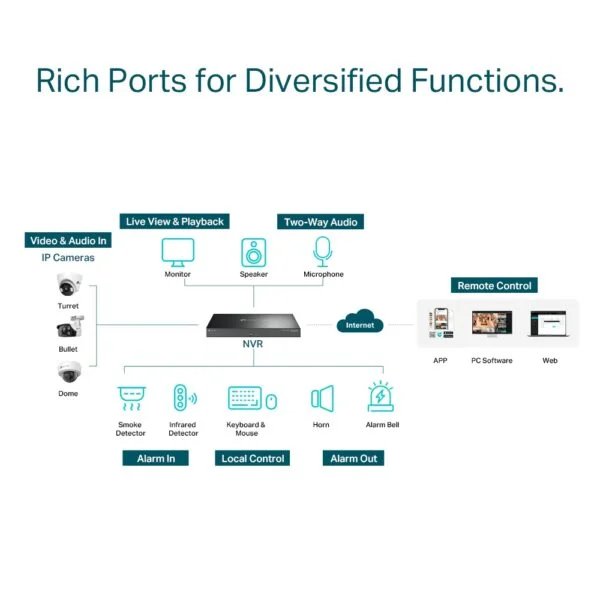

TP-Link VIGI NVR4032H 32 Channel Network Video Recorder with 4 SATA The Tp-link VIGI NVR4032H is a high-performance 32-channel NVR with 4K HDMI and VGA outputs, H.265+ compression for efficient storage, and 320 Mbps bandwidth to support high-resolution feeds. It features 4 SATA slots for up to 40 TB of storage, dual Ethernet ports for flexible network modes, Plug & Play setup, and remote monitoring via the VIGI app and web UI. ONVIF compatibility allows integration with various IP cameras, making it a powerful solution for large-scale surveillan. TP-Link VIGI NVR4032H supports multi-channel decoding (16-ch at 2MP or 8-ch at 4MP) for live view and playback, with HDMI and VGA outputs for independent displays. H.265+ compression reduces storage needs and network load while maintaining clear video quality. With 320 Mbps bandwidth, it handles high-resolution feeds from multiple cameras efficiently. It supports mass storage with 4 SATA slots (up to 10 TB each) and allows 16-channel playback with quick event lookup. Dual Ethernet ports provide network flexibility, while Plug & Play simplifies camera setup. Remote monitoring is available through the VIGI app, web UI, and VIGI Security Manager. Rack mounting and ONVIF compatibility further enhance its versatility and ease of installation. 16-ch@2MP/ 8-ch@4MP Decoding Capacity†: Allows you to enjoy more channels, live view, and playback at the same time. 1 HDMI and 1 VGA Interface: Supports independent video output. H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. 320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions. Mass Storage: TP-Link VIGI NVR4032H Supports 4× SATA, up to 10 TB each. 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage. Dual Ethernet Ports Design: Supports three network modes, including muti-address mode, network fault-tolerance and load balance. Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before. Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and conveniencein TP-Link VIGI NVR4032H Rack Mounting: Space-saving and easy installation. ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. VIDEO AND AUDIO IP Video Input 32-Channel Incoming Bandwidth 320 Mbps Outgoing Bandwidth 320 Mbps HDMI Output Resolution 1 Channel, Resolution: 3840×2160/30Hz,1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA Output Resolution 1 Channel, Resolution: 1920×1080/60Hz,1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz Video Output Mode HDMI/VGA Independent Output Multi-View Display 1/4/6/8/9/16/25/32/36 RECORD MANAGEMENT Record Mode Manual Recording Scheduling Recording Motion Detection Recording Playback Mode Instant Playback Regular Playback • Tag Playback • Event Playback Backup Mode • Regular Backup • Video Clip Backup Playback Function • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off NETWORK Protocol UPnP (Plug and Play), NTP (Network Timing) Mobile Phone Access Android, iOS Incoming Bandwith 320 Mbps Outgoing Bandwidth 320 Mbps Web Browser Chrome (57+), Firefox (52+), Edge (91+) Interoperability ONVIF, CGI EXTERNAL INTERFACE Network Interface 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface USB Interface USB Interface Audio Interface 1, Audio In; 1, Audio Out Alarm In/Out 16/4 Serial Interface 1, RS232 Power 1× AC Jack Reset Button 1 Speaker N/A eSATA N/A HDMI 1 VGA 1 HARD DISK SATA 4 SATA Interfaces Capacity Up to 10 TB Capacity for Each HDD ALARM General Alarm Motion Detection, Video Tampering, Intrusion Detection, Line-Crossing Detection Anomaly Alarm Video Loss, Offline and IP Conflict,Disk Exception, Login Exception, Fan Exception Alarm Linkage Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm
