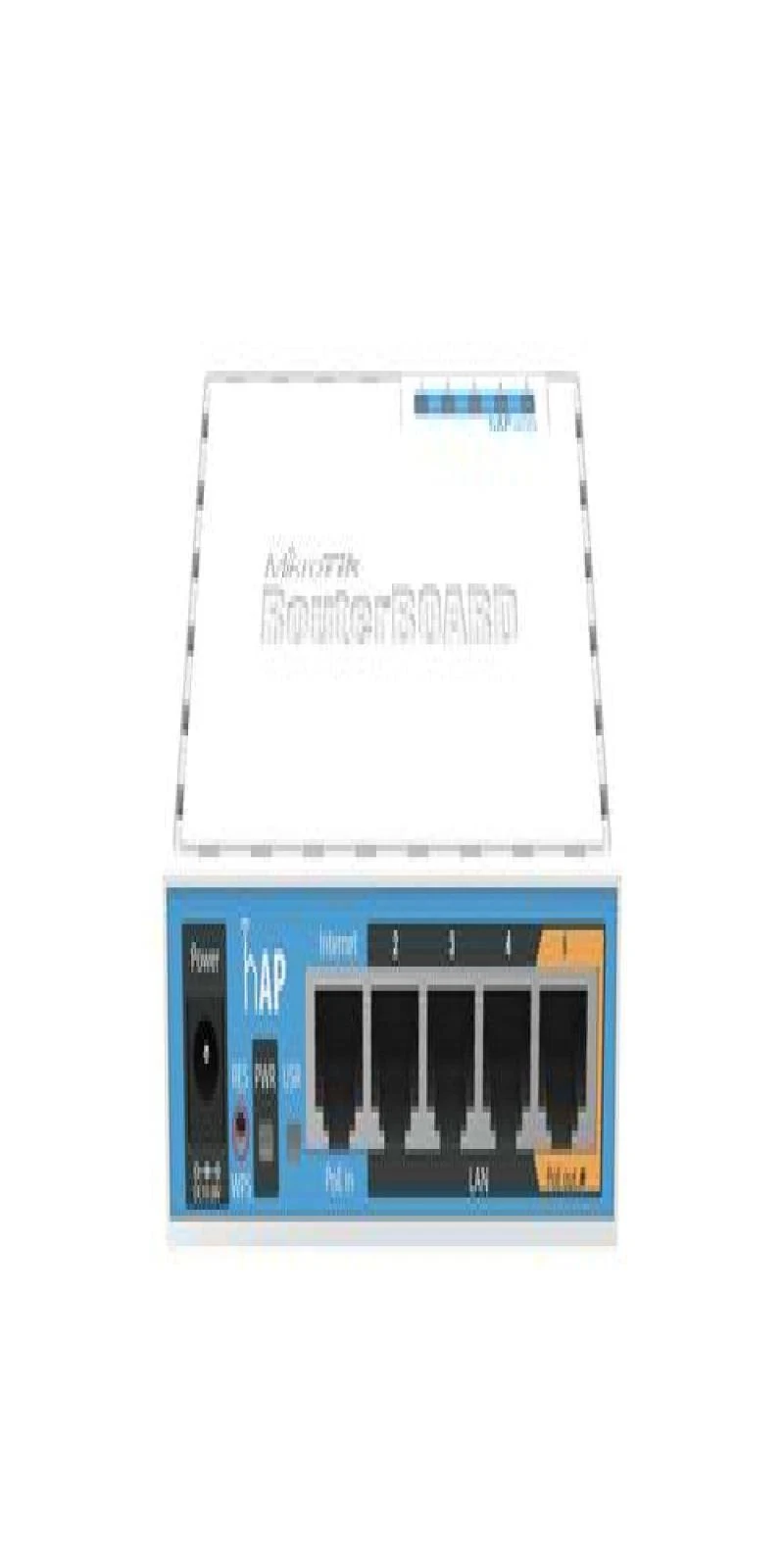

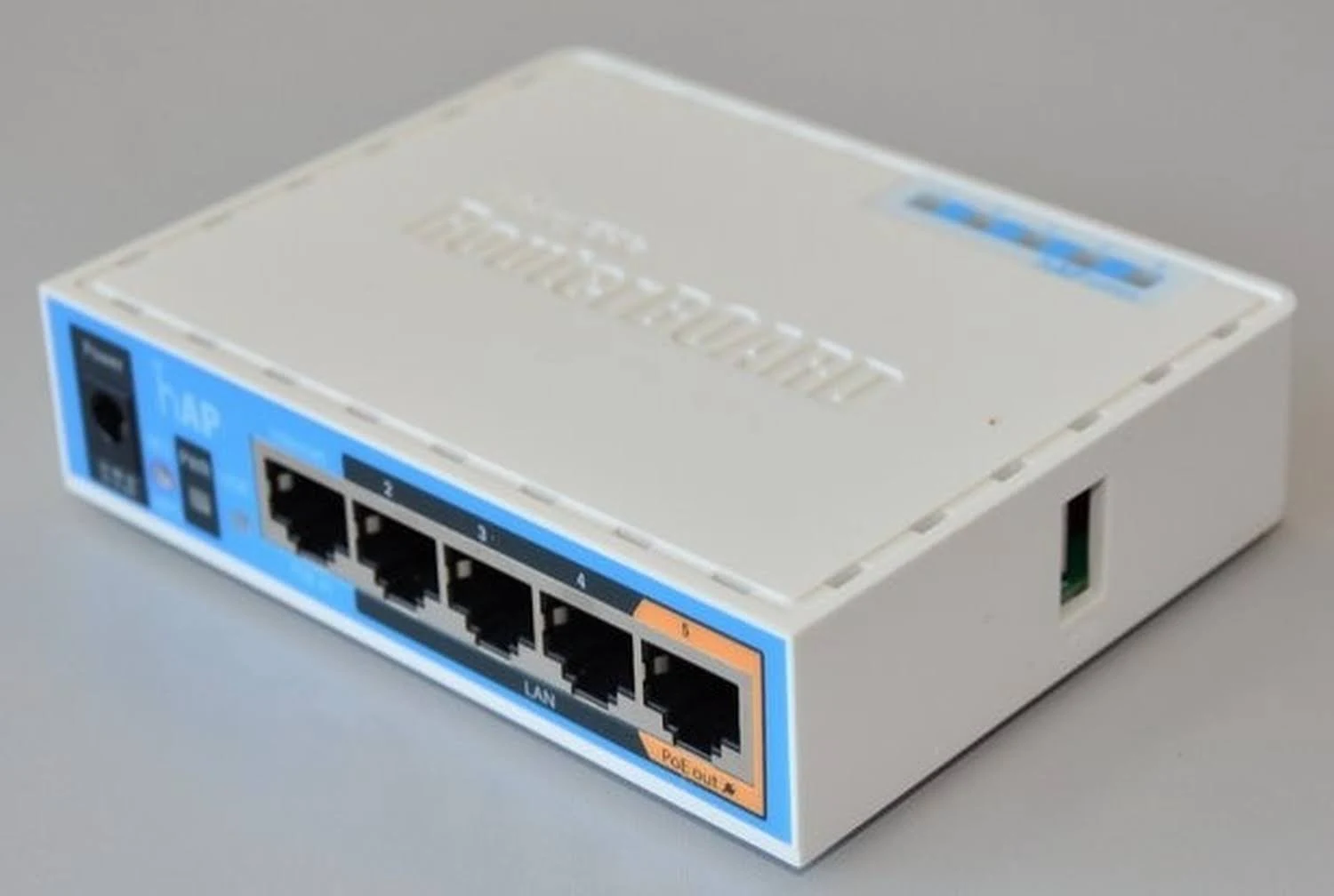

Mikrotik SWITCH RB951ui-2nD compact and powerful Wi-Fi router

Mikrotik Wireless Access Point Router Board, RB951ui-2nD This small home access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas. The device can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included. hAP provides PoE output function for port #5 – it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA. The hAP is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network. Wireless capabilities Details Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 1.5 Wireless 2.4 GHz chip model QCA9531 Wireless 2.4 GHz generation Wi-Fi 4 Ethernet Details 10/100 Ethernet ports 5 Peripherals Details Number of USB ports 1 USB Power Reset Yes USB slot type USB type A Max USB current (A) 1 Powering Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 10-28 V Max power consumption 5 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 10-28 V PoE-out Details PoE-out ports Ether5 PoE out Passive PoE Max out per port output (input 18-30 V) 500 mA Max total out (A) 500 mA Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS IP IP20 Wireless specifications 2.4 GHz Transmit (dBm) Receive Sensitivity 1MBit/s 22 -96 11MBit/s 22 -89 6MBit/s 20 -93 54MBit/s 18 -74 MCS0 20 -93 MCS7 16 -71
