MikroTik RB5009UG+S+IN High-Performance Gigabit Router

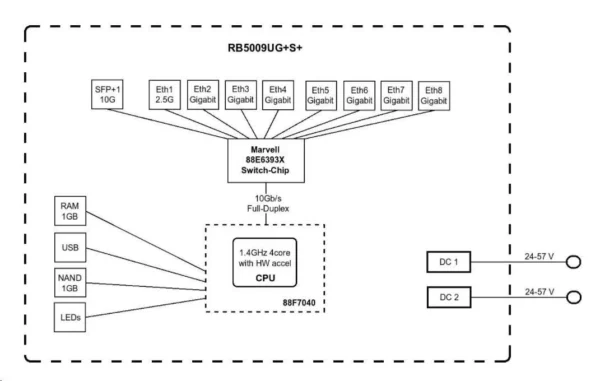

MikroTik RB5009UG+S+IN High-Performance Gigabit Router with SFP+ and one 2.5G port Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more! The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink! RB5009UG+S+IN can be powered in 3 different ways: a) PoE-in from Ethernet port #1 b) DC Jack c) 2-pin terminal (5.08mm 1x2pin) on the side Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads. With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity. Powering Details Number of DC inputs 3 (2-pin terminal, DC jack, PoE-IN) DC jack input Voltage 24-57 V 2-pin terminal input Voltage 24-57 V Max power consumption 25 W Max power consumption without attachments 14 W Cooling type Passive PoE in 802.3af/at PoE in input Voltage 24-57 V Ethernet Details 10/100/1000 Ethernet ports 7 Number of 2.5G Ethernet ports 1 Fiber Details SFP+ ports 1 Peripherals Details Number of USB ports 1 USB Power Reset Yes USB slot type USB 3.0 type A Max USB current (A) 1.5 Other Details CPU temperature monitor Yes Certification & Approvals Details Certification CE, EAC, ROHS
