Mikrotik LHG RBLHG-5nD Dual Chain Point-to-Point Integrated Antenna

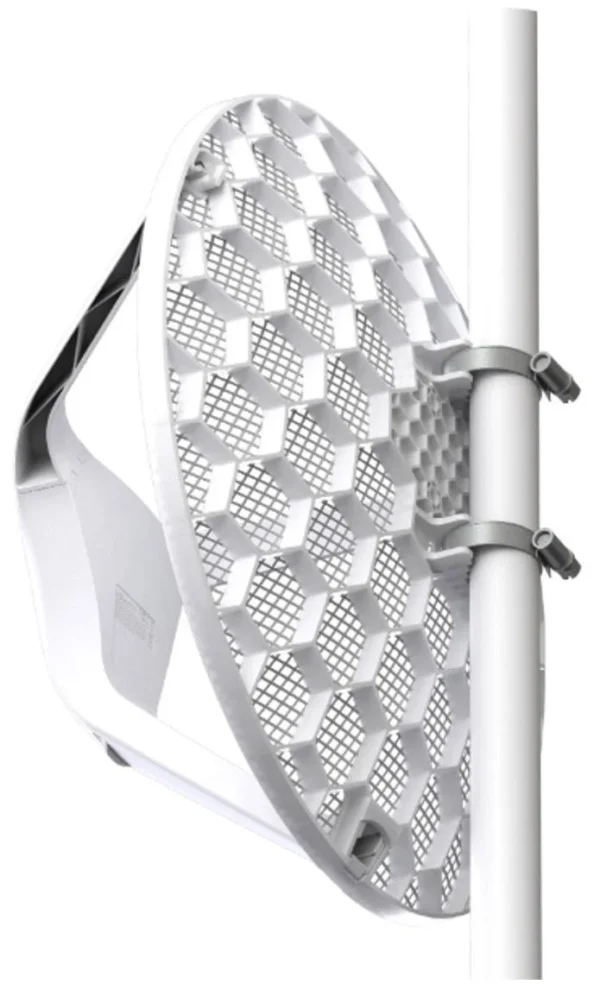

Mikrotik LHG 5 Dual Chain Point-to-Point Integrated Antenna, RBLHG-5nD The LHG 5 ac is a compact and light 5GHz 802.11ac wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides. – LHG 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. – LHG 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations). Powering Details Number of DC inputs 1 (PoE-IN) Max power consumption 8 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 10-30 V Wireless specifications Details Wireless 5 GHz Max data rate 867 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n/ac Antenna gain dBi for 5 GHz 24.5 Wireless 5 GHz chip model IPQ-4018 Wireless 5 GHz generation Wi-Fi 5 Ethernet Details 10/100/1000 Ethernet ports 1 Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS IP IP54 Wireless specifications 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 25 -96 54MBit/s 21 -80 MCS0 25 -96 MCS7 20 -75 MCS9 18 -70
