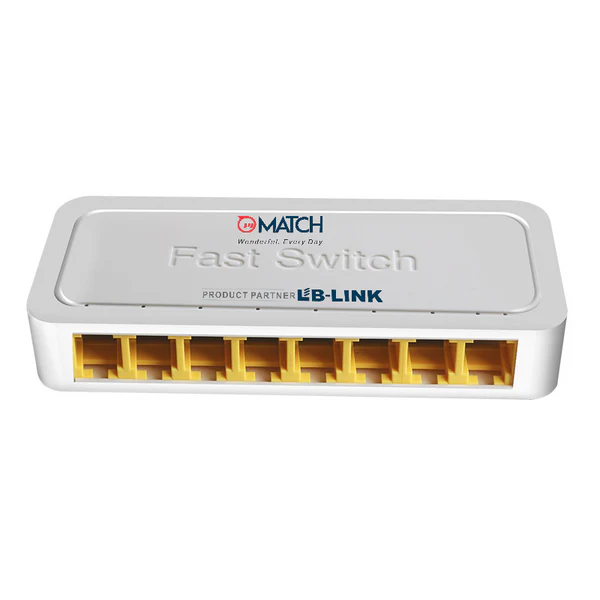

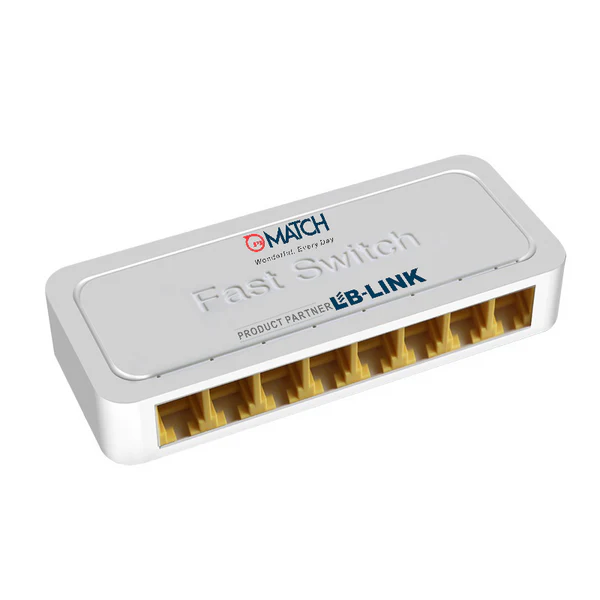

MATCH LB-Link (BL-SF801) 8 Port Ethernet Switch

MATCH LB-Link 8 Port Ethernet Switch (BL-SF801) This Match LB-Link 8 port Ethernet switch is a 10/100Mbps non-management switch, which provides 8 10/100Mbps RJ45 ports and supports wire-speed forwarding of all ports. It supports IEEE802.3az energy-efficient Ethernet (EEE) technology, IEEE802.3x full-duplex flow control function and half-duplex backpressure flow control function. Match LB-Link 8 Port ethernet switch has a durable design, quiet operation, simple and convenient use, no configuration, plug and play, very suitable for the small office, home office (SoHo), and small and medium business (SMB) environments. Features: Comply with IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3az Ethernet standards; Support 8 x10/100Mbps Auto-negotiation RJ45 ports, support auto MDI/MDIX; Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode; Supports IEEE802.3az energy-efficient Ethernet (EEE) technology; 1K entry MAC address table of the switch with auto-learning and auto-ageing; LED indicators for monitoring Port Link / Activity; External power supply, exquisite design, suitable for desktop installation and use Adopt the store-forwarding mode Switching Capacity 1.6Gbps Model Name BL-SF801 Chipset IP178G Standards and Protocols IEEE802.3, EEE802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3a Interface 8 x 10/100Mbps Auto-Negotiation ports Network Media 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) Transfer Method Store-and-Forward MAC Address Table 1K Switching Capacity 1.6Gbps Packet Forwarding Rate 1.19Mbps Indicators Per Device Power Per Port Link/Activity Power Supply DC: 5V, 0.5A External Power Power Consumption Maximum: 1.7W (220V/50Hz) Dimensions 130.7*52.3*20mm Environment Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing
