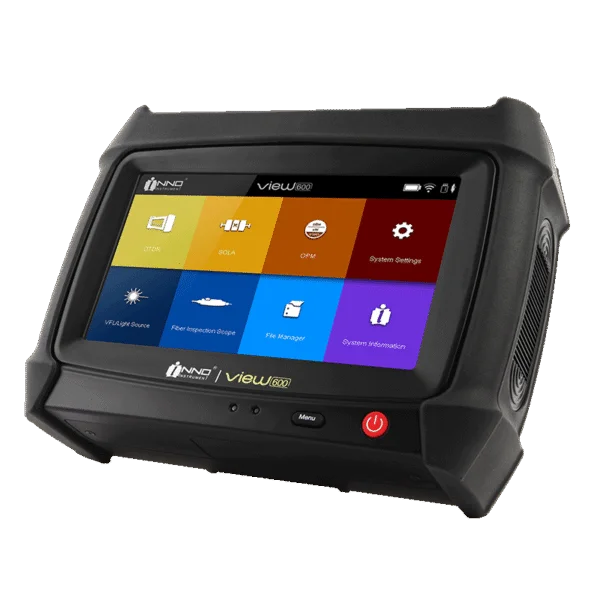

INNO OTDR VIEW600 – Modular Fiber Testing Solution

The INNO OTDR VIEW600 Modular OTDR with capabilities changing depending on the module chosen INNO Instrument proudly introduces VIEW600, a truly modular OTDR with 13 applicable modules, supporting last-mile, access network, FTTX/PON, metro networks. VIEW600 boasts qualified CPU, fast response time, capacitive touch screen, user-friendly GUI, and above all, accurate test result. We guarantee that you can seamlessly test your networks with this changeable smart gear. INNO OTDR Specification Overview Explore the superior specifications of our product, designed with cutting-edge technology to deliver unmatched performance. Each feature is crafted to ensure reliability, efficiency, and user satisfaction, enhancing your experience in remarkable ways OTDR Display Size 7 inches, High Brightness TFT LCD, resolution of 800×480 Distance Units m / km / mile / ft / kft Range Settings 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km Pulse Widths 3ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs Linearity 0.03dB Resolution 0.04m ~ 10.24m Sampling Points 256,000 points Output Power 20mW Dimensions Size (HWD) 6.25H x 8.58W x 2.75D inches Weight 3.75pounds (1.70kg with battery) Product Type Power cable/AC Adapter ACC-25/JS-180300 Carrying Case Soft case Shoulder strap/ Touch pen ✔ Calibration certificate ✔ Optional Accessories Type Module 1 1310 / 1550 Module 2 1310 / 1550 / 1625 Module 3 1310 / 1550 / 1625 live port Module 4 1310 / 1550 Module 5 1310 / 1550 / 1625 live port *Module 6 850 / 1300 *Module 7 850 / 1300 / 1310 / 1550 Module 8 1310 / 1550 Module 9 1310 / 1550 / 1625 Module 10 1310 / 1550 / 1625 live port Module 11 1310 / 1550 / 1650 live port Module 12 1625 live port Module 13 1650 live port
