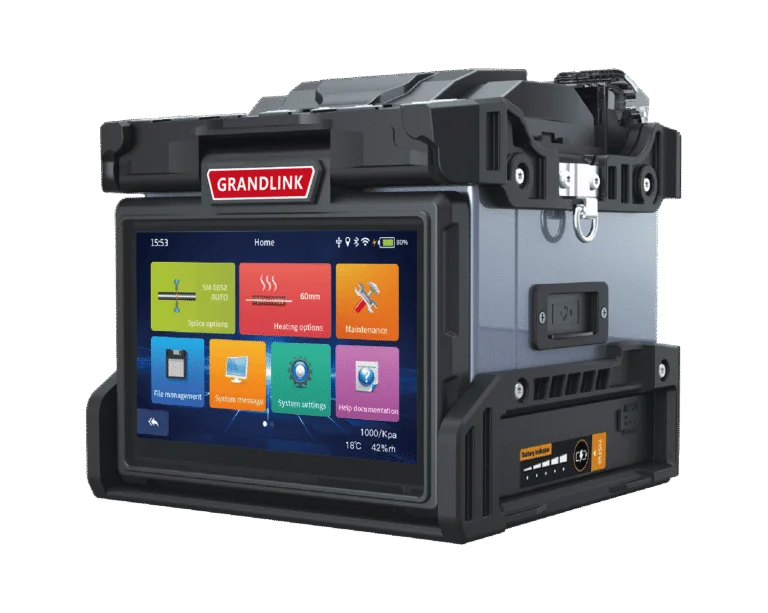

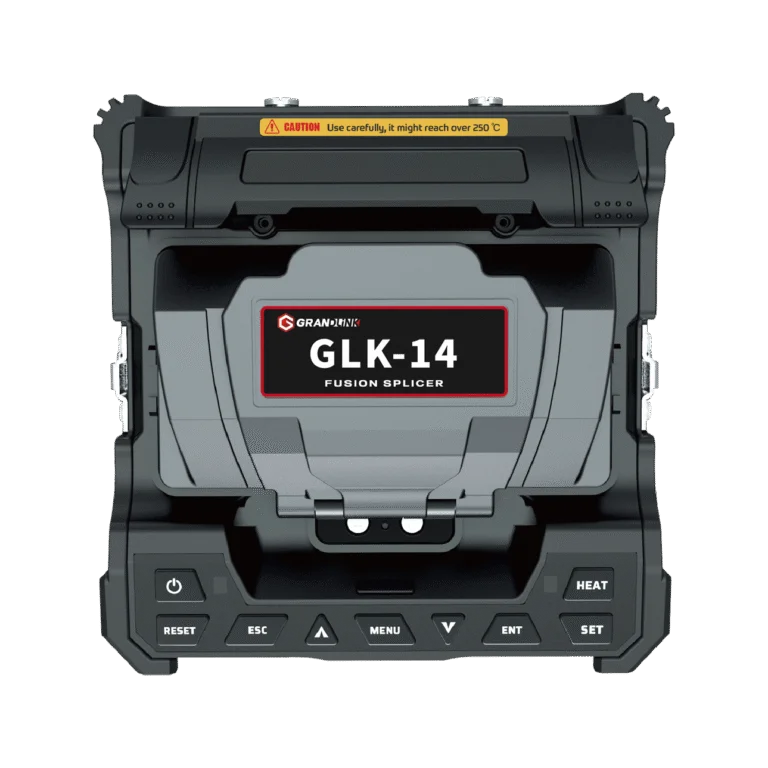

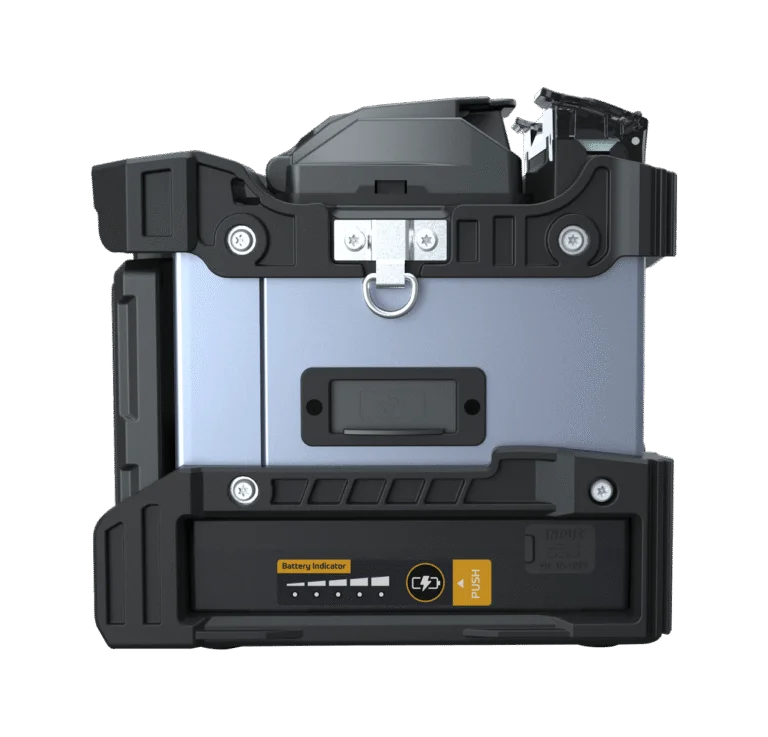

Grandlink GLK14 Fiber Optic Splicing Machine with 5-Inch Touch Screen & 420X Zoom

Grandlink GLK14 fiber optic fusion splicer splicing machine The Grandlink GLK14 Splicing Machine is a professional-grade fiber fusion solution designed for demanding telecom, FTTH, and field installation environments. With 420X image magnification and a 5-inch HD capacitive touch screen, it ensures precise fiber alignment and seamless operation—even in harsh conditions. Powered by an industrial-grade processor and supported by 6200mAh battery life, it can perform up to 420 splice-and-heat cycles on a single charge. The machine supports modular expansion, including Bluetooth, WiFi, GPS, OTDR, VFL, OPM, 10G PON, and even Laser Ranging—making it a future-ready splicing machine built for high-performance fiber networks. It features a voice-guided interface, real-time discharge correction, and double touch operation for user-friendly control. The multi-functional clamp accommodates multiple fiber types, and the data capacity allows storage of 20,000 splice records and 2000 images, making the GLK14 splicing machine perfect for long-term project tracking and advanced diagnostics. Specifications Specification Details Model GLK14 Splice Time 6–7 seconds Heating Time 18 seconds (adjustable) Motors 4 Motors Image Magnification 420X Display 5″ HD Capacitive Touch Screen Processor Industrial-grade CPU Battery Capacity 6200mAh (420 splice/heat cycles) Clamp Type 3-in-1 Multifunctional Fixture Welding Modes 500 Programs Heating Modes 200 Programs Memory 20,000 records + 2000 images Splice Loss SM: 0.02dB, MM: 0.01dB, NZDS: 0.04dB Return Loss ≥60dB Electrode Life ≥5000 discharges Auto Heating Supported Discharge Calibration Real-time + Manual Languages Multiple (User-selectable) Operating Altitude 0–5000m Working Temp/Wind -20℃ to +50℃ / 15m/s Wind Speed Humidity 0–95% (non-condensing) Power Supply AC100–240V / DC15–19V Startup Time 3 Seconds USB Function USB 2.0 Port + Reverse Charging Weight 1.88 kg (with battery) Dimensions 150 × 146 × 145 mm ✅ What’s in the Box 1 × Grandlink GLK14 Splicing Machine 1 × Fiber Cleaver 1 × Drop Cable Stripper 1 × Power Adapter & Charger 1 × Spare Electrodes 1 × Alcohol Bottle & Cleaning Brush 1 × User Manual (USB/Printed) 1 × Rugged Carrying Toolbox
