EXFO MaxTester MAX-730D OTDR | 1310/1550/1625/1650nm, 39/38dB Dynamic Range | iOLM Ready, SC/UPC | Handheld Fiber Testing Device

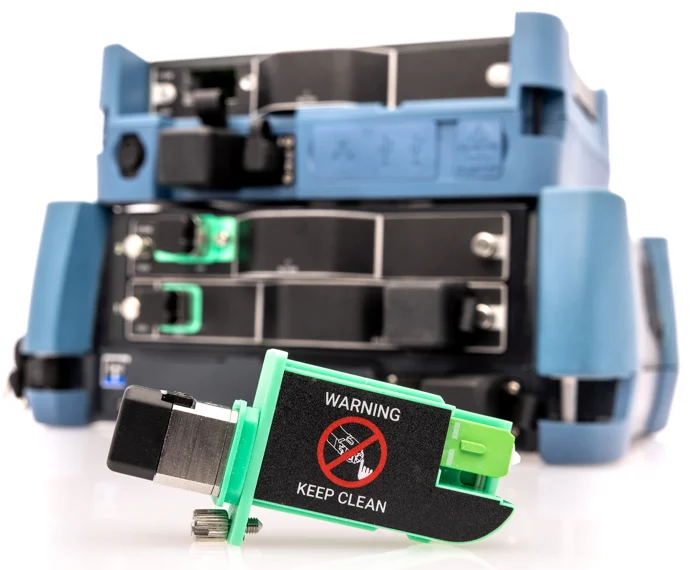

EXFO MaxTester MAX-730D OTDR | 1310/1550/1625/1650nm, 39/38dB Dynamic Range | iOLM Ready, SC/UPC | Handheld Fiber Testing Device EXFO MaxTester MAX-730D OTDR is a rugged, tablet-style handheld unit made for FTTx, PON, and metro fiber networks. It supports 1310/1550/1625/1650 nm calibrated wavelengths and offers up to 39 dB dynamic range. This ensures accurate fiber testing, even through splitters up to 1×128. With iOLM (Intelligent Optical Link Mapper), it turns complex trace analysis into a simple one-touch process. The large 7-inch outdoor-ready touchscreen makes operation easy in any lighting. It also features a 12-hour battery and a tough housing, ideal for field use. The Swap-Out Connector system allows for quick field-level connector replacement—eliminating costly downtime and service center visits. Integrated tools like a VFL, power meter, and USB port make this OTDR a complete fiber testing solution in your palm. Specifications Table Specification Details Product Name EXFO MaxTester MAX-730D OTDR Wavelengths 1310 / 1550 / 1625 / 1650 nm Dynamic Range 39 dB / 38 dB Dead Zones EDZ: 0.6 m, ADZ: 2.5 m Touchscreen Size 7-inch, outdoor-enhanced Display Type Rugged, Tablet-Inspired Touchscreen iOLM-Ready Yes Exchange Compatibility Yes Autonomy (Battery Life) Up to 12 Hours Interface Type SC/UPC Product Type Handheld OTDR Applications FTTH, PON, Metro, Live Fiber Testing Connector Type Swap-Out (Field Replaceable) Built-In Tools VFL, Power Meter, USB Support
