EXFO MaxTester 730D LIVE – PON/Metro OTDR FTTH PON /MDU FIBER & Metro Network Testing LIVE OTDR

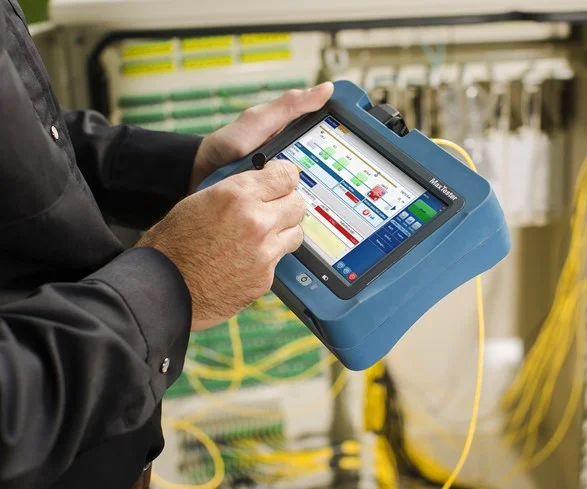

EXFO MaxTester 730D – PON/metro OTDR Fully featured, entry-level, dedicated OTDR with tablet-inspired design, suitable for metro and optimized to test through optical splitters, for seamless end-to-end FTTH characterization and troubleshooting. EXFO MaxTester 730D – PON/metro OTDR Fully featured, entry-level, dedicated OTDR with tablet-inspired design, suitable for metro and optimized to test through optical splitters, for seamless end-to-end FTTH characterization and troubleshooting. The MAX-730D advantage 7-inch, outdoor-enhanced touchscreen Optimized to test through optical splitters and characterize FTTH links Characterize and troubleshoot links up to 100 km with a dynamic range of 39 dB Find more problems closer to the splitter than other OTDRs thanks to the highest resolution for PON testing and the shortest PON dead zone available Key Feature Handy, lightweight, powerful, tablet-inspired design 7-inch, outdoor-enhanced touchscreen-the biggest in the handheld industry 12-hour autonomy Dead zones: EDZ 0.6 m, ADZ 2.5 m Dynamic range: 39/38/39 dB Rugged design built for outside plant iOLM-ready: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task Application FTTx/PON testing though splitters (up to 1×128) Access network testing (P2P) Metro links testing (P2P) Live fiber troubleshooting The MaxTester 730D (MAX-730D) is designed for testing through FTTH/PON splitters for end-to-end characterization. This handheld OTDR is ideal for FTTH/PON testing, live fiber troubleshooting and metro range testing.
