DB METER SOLID SF-810 HEVC

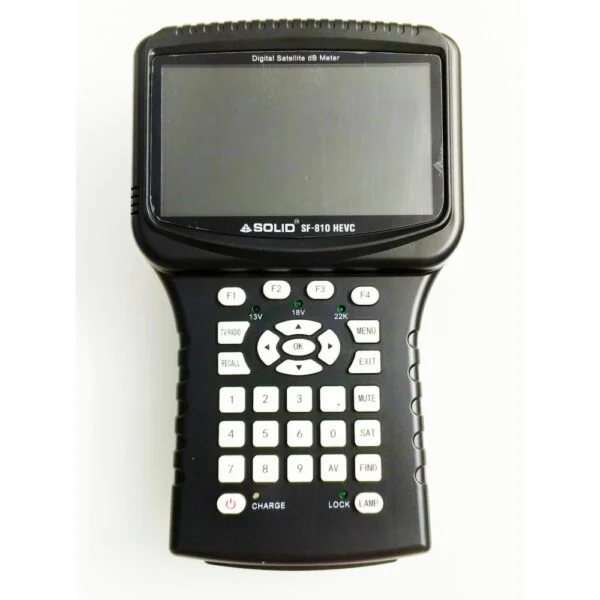

SOLID SF-810 HEVC Full HD Digital Satellite dB Meter Now you can check audio and video for FTA satellite TV channels. This meter is an upgraded version of SF-810 and comes with HEVC technology. General Features DVB-S/DVB-S2 Constellation and Spectrum Analyzer supported 4.3 “inch definition TFT LCD screen Measurement of BER, MER, C/N CCTV camera Tester supported 13V/18V/22KHz/Lock/Power status display DISEqC 1.0/1.1/1.2/USALS Multi-media Payout supported Multilingual OSD for worldwide use USB2.0 interface available for software update LED torch and stereo- loudspeaker inside 5000mAh long-life rechargeable Li-ion battery Product Overview Power Key: Press the power key for 3s to turn the unite on/off LCD Screen: Shows menus and parameters clearly Power light: Indicates the power status Red: The unit is switched on or in charging Red flashing: The unit has been short-circuited Red/Green alternating flashing: The unit needs to be charged or it is fully charged Lamp Light: switch on/off the utility LED on the back 22K Hz/ 13V/18V lights: Indicate the 22K Hz/ 13V/18V status Function keys: F1-F4, to access functions indicated on the display Arrow key and OK key: Press the arrow key to select the desired function then press OK to confirm 8. MENU key: Enter the main menu EXIT key: Exit from the present menu back to the previous menu 10. SAT key: To start satellite search FIND key: Enter the packet control menu, You can find the information about transponders quickly TV/RADIO: To switch between TV and Radio services RECALL: Show the previously viewed channel or list III. Technical parameters DVB-S/S2 Measurement Modulation type QPSK 8PSK 16APSK 32APSK Symbol Rate 1Mbps-60Mbps Frequency Range 950MHz-2150MHz Input Signal Level -65dBm-25dBm Input Impedance 75 ohm Code Rate 1/4 , 1/3 ,2/5 ,1/2 ,3/5 , 4/5 ,5/6 ,8/9 , 9/10 LNB Switch Control 22KHz DisEqC 1.0/1.1/1.2 DiSEqC 1.0/1.1/1.2/1.3(USALS) General Features Operating Temperature 0 degree calicoes~50 degree calicoes AC/DC Adapter INPUT: AC 100V-240V 50/60Hz OUTPUT : DC 12V/1.5A Li-ion Battery 5000mAh/ 7.4 Rechargeable Charge time About 4 hours Working time Around 3-4 hours (fully charged) Weight 0.6 KG Dimension (W*H*L) 200mm*120mm*60mm CCTV TESTER Format CVSB (basic) TV 14.0/V12.0/AHD3.0(OPTION) DVB-T/T2 Measurements (OPTION) Modulation Type QPSK, 16QAM,256QAM Connector Type F-TYPE Frequency Rate VHF:174-230MHz UHF:470-858MHz DVB-C: 44MHz-864MHz VII. Standard Accessories User’s manual Adapter F-type connector Li-ion Battery 5000mAH/7.4 Rechargeable OPTIONAL ACCESSORIES – HDMI cable AV cable DC- Micro USB power cable Car charger/power cable BNC-AV connector Nylon Bag & Straps IV.System Setting Time Setting Change the settings of the time /time zone Software Upgrade Software update by USB Factory Reset Reset all settings to factory default, the password is 0000. Main Menu-> Setting-> Setting Language change the language of Menu / Audio/ Subtitle/TTX/EPG Network Setting Other DC 12V output on/off Optional Functions 1. DVB-T/T2 Main menu-> Installation-> DVB-T to setting and according to your region to find DVB/T2 signal and channels DVB-C settings (option) Main menu-> Installation-> DVB-C to settings and according to your region to find DVB-C signal and channels 3. CCTV Monitor This model supports a CCTV monitor function, connecting your composite camera signal correctly and pressing the AV button to active Connect the CCTV camera signal cable with finder BNC to AV Connect the CCTV camera with the finder via a power cable (12V out interface) Enter the Main menu – system setting – other power supply: Switch to ON” Satellite Meter Setup Installation Press the MENU key to show the main Menu and enter the satellite installation mode. Antenna Setting Main Menu->Installation->Antenna Setting Enter the satellite setting to select. Use (/) Buttons to set LNB DiSEqC and TP . When all parameters are confirmed, press OK to start searching for channels Satellite Setting Main Menu->Installation-> Satellite List Press OK to enter the satellite settings, On this page, you can change the setting of pre-programmed satellites. Also, you can delete/add/edit/search manually Calculation Main Menu->Installation->Calculation Press OK to enter the calculation function, choose the satellite you want to find, input your local Longitude and latitude, press OK and finder will calculate Azimuth/ Elevation / Polarity for you. Finder Main Menu-> Finder->DVB-S2 press OK to enter the DVB-S2 signal finder function, choose the satellite you want to find. Spectrum Main Menu-> Spectrum In this menu you can see the strength of all received transponders Constellation Main Menu-> Constellation enter into the constellation mode.
