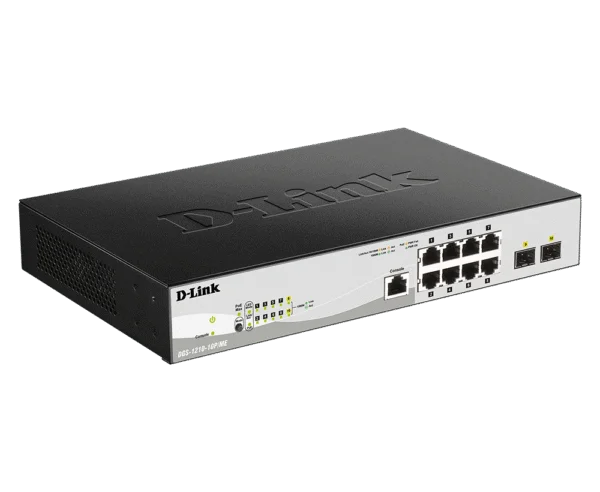

D-Link DGS-1210-10P/ME 10-Port Gigabit PoE Metro Ethernet Switch

Ideal for Metro Ethernet The DGS-1210ME Series Metro Ethernet Switches feature a variety of port configurations, including 10/100/1000BASE-T RJ-45 ports, 1G SFP ports, and 10G SFP+ ports for increased network bandwidth. Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-1210ME Series Metro Ethernet Switches ideal for Metro Ethernet applications. Efficient and Resilient For mission critical environments, the DGS-1210ME Series Metro Ethernet Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). The switches also support IEEE 802.3ad link aggregation, increasing bandwidth and redundancy for higher availability. This series furthermore features IEEE 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to 8 queues. Advanced traffic classification parameters allow the network to be tuned for flexible configurations for specific multimedia applications such as VoIP or IPTV. Security & Authentication The DGS-1210ME Series supports IEEE 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control to the network. The IP-MAC-Port Binding (IMPB) feature allows administrators to further enhance user access control. The built-in D-Link Safeguard Engine™ protects the CPU from broadcast, multicast, and unicast flooding. In addition, the Access Control List (ACL) feature enhances network security and switch performance. Multicast Applications The DGS-1210ME Series features a full set of L2 multicast functions, including IGMP snooping, IGMP filtering, fast leave, and multicast traffic configuration for specific ports. With L2 multicast support, the DGS-1210ME Series is ready and capable of handling growing IPTV applications. Management Capabilities A user-friendly web interface gives administrators access to advanced management features such as DHCP auto-configuration, allowing central management of device configurations. The switches support Link Layer Discovery Protocol (LLDP), which advertises the device’s capabilities and identity to the local network, allowing administrators to better manage their network topology. Each port also supports cable diagnostics to troubleshoot cable length and functionality problems remotely. Traffic & Bandwidth Control Integrated bandwidth control allows network administrators to define the throughput levels for ingress and egress bandwidth. It provides a minimum granularity of 64 Kbps for ingress port and flow-based bandwidth control, and a minimum granularity of 64 Kbps for egress queue bandwidth. The DGS-1210ME Series also supports traffic control, which optimizes overall performance, while port mirroring helps administrators perform traffic diagnostics and track network performance. Specification Switching Capacity 20 Gbps Maximum Forwarding Rate 14.88 Mpps Dimensions 280 x 180 x 44 mm(11.02 x 7.08 x 1.73 in) Weight 1.92 kg Maximum Heat Dissipation 307,703 BTU/hr Acoustic 0 dB MTBF 315,336 hours Temperature Operating: -5 to 50° C (23 to 122° F) Storage: -20 – 70 ˚C Humidity Operating: 0% – 95% RH Storage: 0% – 95% RH Operating Altitude 1500 m Max Power Consumption 101.7 W (PoE on) 17.9 W (PoE off) Standby Power Consumption 10.3 W/100V 11.1 W/240V Store & Forwarding Forwading Yes Power Input 100 to 240 V AC CPU Speed 400MHz DRAM Size 256MB Packet Buffer Size 1.5Mbits Flash Memory Size 32 MB FAN Fanless MAC Address Table Size 16K Control 802.3x Flow Head-of-line (HOL) Blocking Prevention Yes Spanning Tree Protocol (STP) IEEE 802.1D STP IEEE 802.1s MSTP IEEE 802.1w RSTP Jumbo Frame 9,216 Bytes IGMP Snooping Max 1024 IGMP Snooping Groups Interfaces 8 x 10/100/1000BASE-T PoE ports 2 x 1000M SFP 4 x Max IP Interface 2 x SFP ports 8 x 1000Base-T PoE ports PoE Power Budget 78 W Aggregation 802.1AX Link 802.3ad Link 8 x Link Aggregation Group Per Device 8 x Max Port Per Link Aggregation Group Console Port Yes
