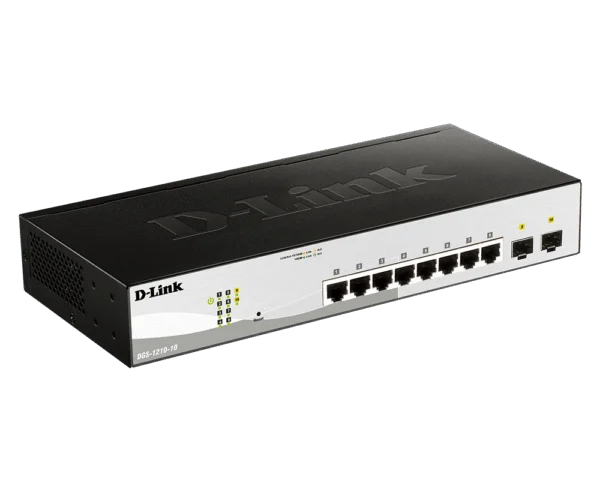

D-Link DGS-1210-10 10-Port Gigabit Smart Managed Switch

PoE Support Five of the nine models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-10MP, DGS-1210-28P, DGS-1210-28MP and DGS-1210-52MP. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet. They also support time-based PoE, which allows administrators to set a time window that determines when each port’s PoE power is turned on and off. All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model. Automatic Configuration The DGS-1210 Series supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied. Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs. Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying management of your surveillance network. Comprehensive Security Features to Protect Your Network D-Link’s innovative Safeguard Engine protects switches against traffic flooding and virus attacks. 802.11X port-based authentication allows the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. Extensive Management and Layer 2 Features The DGS-1210 Series comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The Series also supports advanced features such as static routing, which allows for communication between different user groups in different VLAN segments in a network. The switch can directly handle inter VLAN routing using multiple interfaces, making the network run faster and more efficiently. And, because the switches can manage internal routing, the network router can be assigned to handle external traffic routing only. Specification Interfaces 8 x 10/100/1000 BASE-T ports 2 x SFP ports Switch Capacity 20 Gbps Max. Packet Forwarding Rate 14.88 Mpps Dimensions 280 x 126 x 44 mm Weight 0.98 kg Temperature Operating: -5 to 50° C (23 to 122° F) Storage -20 – 70°C Operating Altitude 1500 m Max Power Consumption 6.31 W/100 V 6.33 W/240 V Standby Power Consumption 2.03 W/100V 2.07 W/240V Maximum Heat Dissipation 21.53 BTU/hr (100V) 21.59 BTU/hr (240V) MTBF 1,380,058 hours Power Input 100 to 240 V AC CPU Speed 500MHz DRAM Size DDR3 128MB Flash Memory Size 32 MB Packet Buffer Size 4.1Mbits FAN Fanless Acoustic 0 dB Humidity Operating: 0% – 95% RH Storage: 0% – 95% RH
