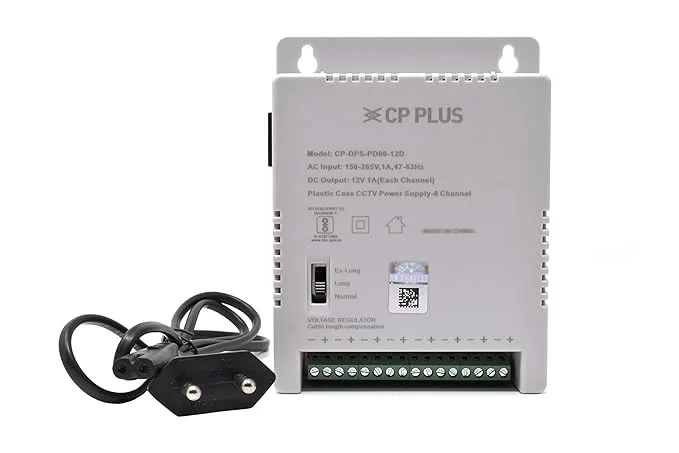

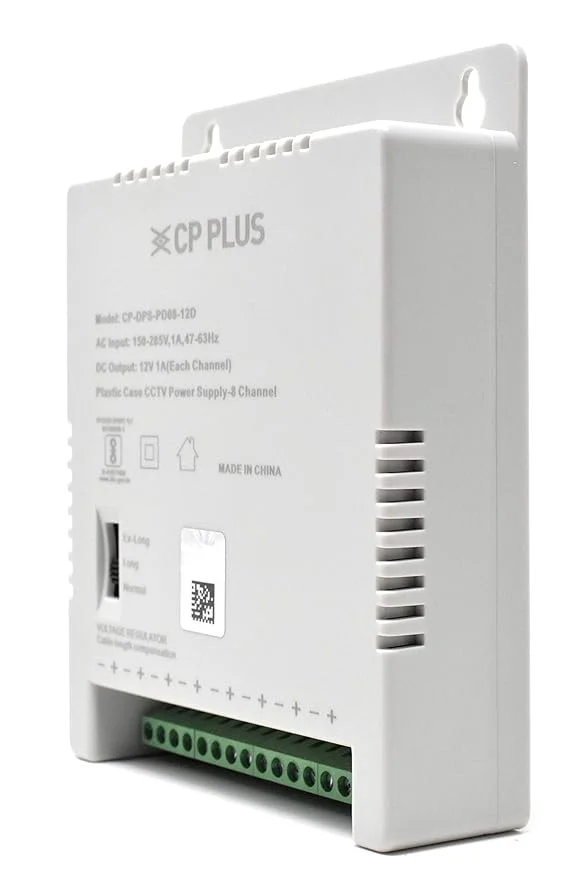

CP PLUS CP-LPS-PD08-12D CCTV Power Supply – 8 Channel, 12V DC Output

CP PLUS CP-LPS-PD08-12D 8 Channel Eco Power Supply – 12V DC Output, CCTV Power Supply Distribution Box, Energy Efficient, Short-Circuit Protection Upgrade your surveillance setup with the CP PLUS CP-LPS-PD08-12D CCTV Power Supply. Designed for 8-channel systems, this 12V DC power distribution box ensures stable, energy-efficient performance with built-in protections against overload, short-circuits, and voltage fluctuations—perfect for any professional CCTV installation. Input voltage 150VAC – 240VAC Output Connector Terminal Block Type Output voltage 12V DC Current Range 0-1A Each Channel Voltage Adj. Range 12V DC – 15V D Ripple & Noise (max.) <200mV Rated Power 48W Voltage Tolerance 10% Line Regulation <3% at 150Vac-240Vac Linear modulate SMPS (Switch mode power supply) Load Regulation <10% at 150VAC-240VAC Setup Rise time 30mS max @ rated load, output voltage from 10% to 90%. Hold Up Time (Typ.) 30ms max @ full load & 230Vac input turn of Temperature coefficient Max 75 degree start time 30mS max @ rated load, output voltage from 10% to 90%. Frequency Range 50Hz-60Hz. Normal Efficiency (Typ.) 70% AC Current (Typ.) 1.2A Max @ max 100-240VAC Input & full load guard time MAX 2Sec@ 150-240VAC at Input & full load override protection Supported Inrush Current (Typ.) 50A max @ 240 Vac input & full load Leakage Current 0.008 A Max. Over Voltage Protection Supported short-circuit protection Supported (AUTO RECOVERY) Over Load Supported Withstand Voltage Input (100 – 240)V AC/ Output (12 -15)V DC Isolation Resistance 50MΩ min at primary to secondary add 500Vdc test voltage Over Current Supported Working temperature -10°C to +45°C Store temperature -40°C to +70°C Weight 233.1gm Working Humidity 5% to 95% Dimension 154.7mm x 97.38mm x 32.90mm Body Type Plastics ABS
