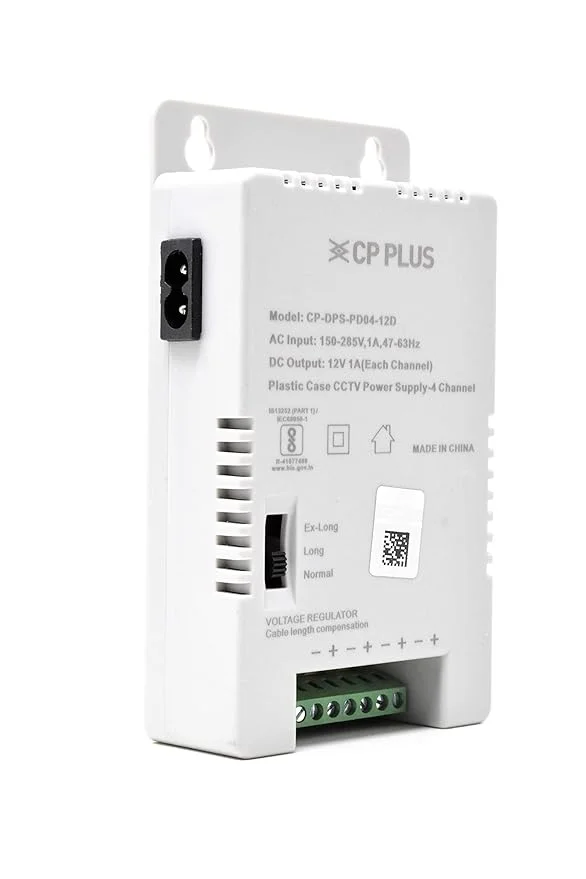

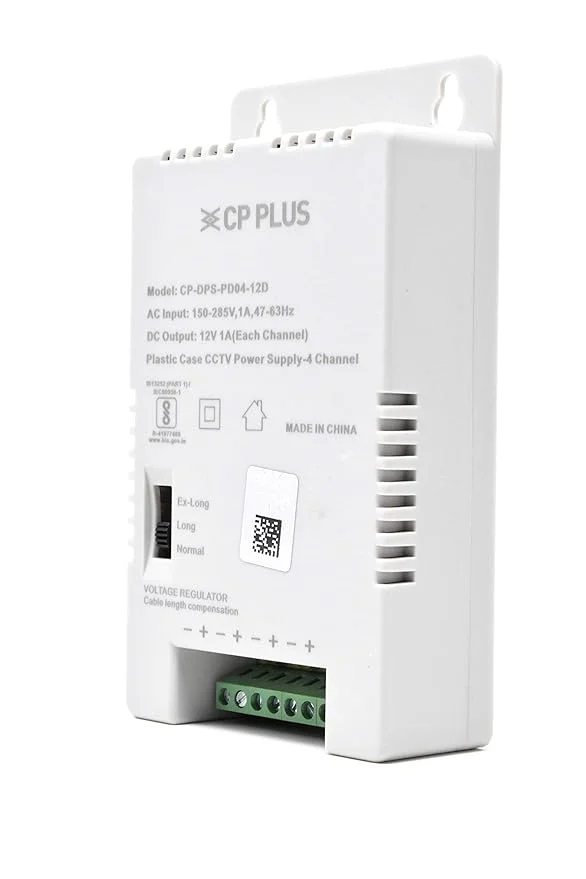

CP PLUS CP-DPS-PD04V3-12D 4 Channel Power Supply – 12V DC Output, CCTV Camera Power Distribution Box, Metal Enclosure, Overload & Short-Circuit Protection

CP PLUS CP-DPS-PD04V3-12D – 4 Channel CCTV Power Supply (12V DC) The CP PLUS CP-DPS-PD04V3-12D CCTV Power Supply is a compact and efficient 4-channel unit. It provides a reliable 12V DC output for CCTV systems. Housed in a durable metal enclosure, it delivers up to 36W of power. The unit includes protection against overload, over-voltage, and short circuits to safeguard your security setup. It features a built-in EMI filter and a cable compensation switch with 3 selectable modes. An LED power indicator ensures easy monitoring. This power supply is suitable for both wall-mount and desktop installation. Input voltage 200 ~ 240VAC Input AC Frequency Range 47 ~ 63Hz Input Current (Typ.) 0.5A/230VAC Power Cord 2 Pin (L & N) Standby Power Consumption ≤0.5W Inrush Current (Typ.) ≤40A@230VAC Efficiency (Typ.) 85% Output voltage 12V in Normal Mode Output Current 3.0A in Normal Mode Output Current range 0 ~ 3.0A in Normal Mode Rated Power 36W in Normal Mode Ripple & Noise (max.) ≤240mV Line Regulation 2% Load Regulation 3% Power On Indicator Support Cable Compensation Switch Support, 3 Modes (Normal, Long, Ex. Long) No. of Output Ports Single Port short-circuit protection Support Dielectric Strength (Hi-pot) 3.0KV Insulation Resistance 100MΩ@500VDC Surge Immunity 1.0KV Operating Temperature -10 ~ +45°C Operating Humidity 20 ~ 90% RH Non-condensing Storage Temperature -10 ~ +45°C Storage Humidity 10 ~ 95% RH Dimension 132.7mm x 77.7mm x 33.2mm Weight 0.144kg without Power Cord and Packing Box
