CCTV – Camera TP-Link VIGI C540-W

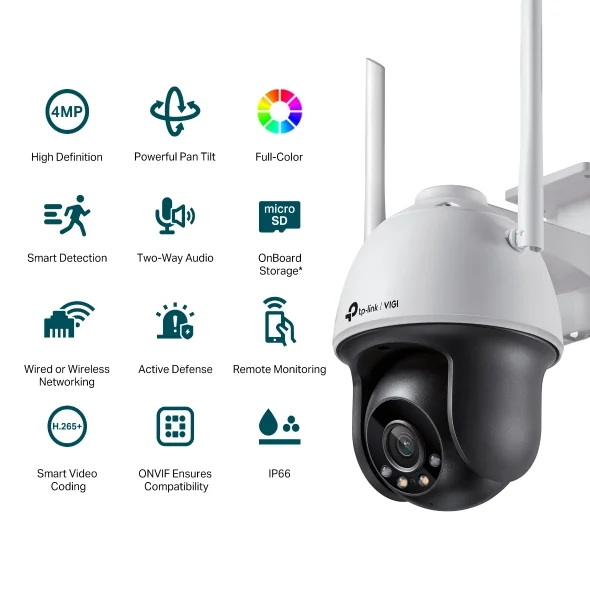

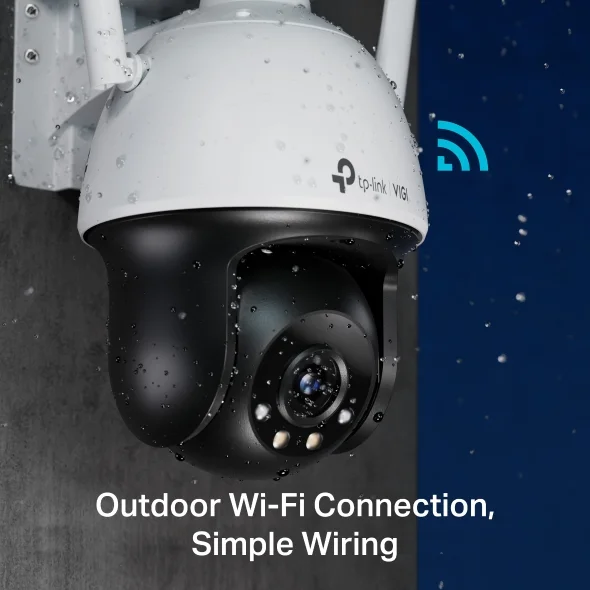

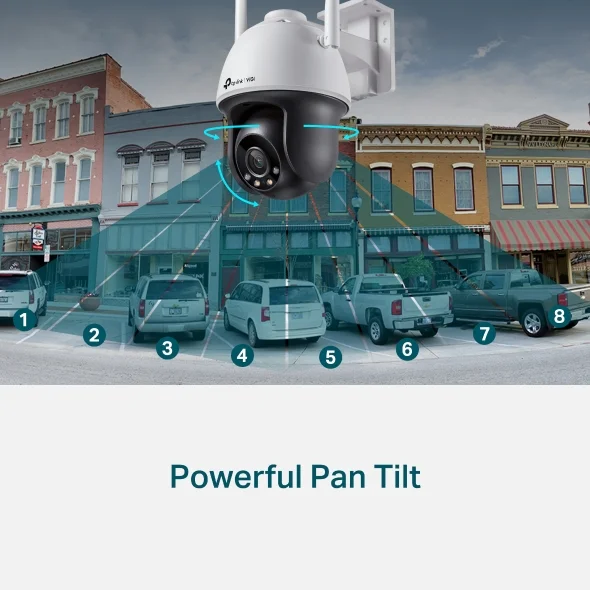

TP-Link VIGI C540-W Outdoor WiFi Camera Full Colour- 4mm Lens The Tp-link VIGI C540-W is a 4MP outdoor wifi pan-tilt camera with 24/7 full-color night vision and spotlight LEDs. It features smart detection for motion, intrusion, and line-crossing alerts. The camera supports wireless connectivity, has an IP66 waterproof rating, and utilizes H.265+ compression for efficient video storage. Manage your security easily through the VIGI app. The TP-Link VIGI C540-W 4MP Outdoor wifi Camera offers high-definition 4MP resolution, 24/7 full-color video, and pan-tilt control with customizable patrols. It supports wireless setup, features IP66 waterproofing, and includes smart detection (motion, intrusion, line-crossing, tampering) for real-time alerts. With H.265+ compression, it saves bandwidth and storage, while the VIGI app provides convenient remote management. 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details. 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs. Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property. Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals. Waterproof: Reliable IP66 for stable outdoor performance. Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs the camera. H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. VIGI App: Manage your security from the palm of your hand with the VIGI app. Brand Name TP-Link Model Name VIGI C540-W Dimension(cm) 24X24X16 Weight(kg) 1.16 CAMERA Image Sensor 1/3” Progressive Scan CMOS Shutter Speed 1/3 to 1/10000 s Slow Shutter Yes Aperture 4 mm: F1.6 Lens Fixed focal lens (4 mm) Lens Mount M12 Minimum Illumination 0 lux with IR/white Light Day/Night Mechanism IR Cut Filter Day/Night Switch Unified/ Scheduled/ Auto Digital Noise Reduction 3D DNR WDR DWDR Weatherproof Rating IP66 IR Working Distance 30m Pan/Tilt Range Pan: 0° to 350°, Tilt: 0° to 120° Illumination Distance 30 m Viewing Angle (4mm) Horizontal FOV: 79°Vertical FOV: 43°Diagonal FOV: 93° Digital Zoom Yes LENS Type Fixed Focal Lens Focal Length 4 mm Aperture F1.6 FOV 4mm: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° Lens Mount M12 DORI Distance 4 mm: Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) PTZ Pan/tilt Range Pan: 0° to 350°, Tilt: 0° to 120° Pan/tilt Speed Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/sTilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s Manual Control Speed Configurable from 8° to 35°/s Presets 300 Patrol Scan 8 patrols, up to 8 presets for each patrol Power-off Memory Yes; Auto restore to previous PTZ and lens status after power failure Park Action Yes; Preset; Patrol Scan 3D Positioning Yes ANGLE ADJUSTMENT (MANUAL) Range Pan: 0° to 348° Tilt: 0° to 120° ILLUMINATOR IR LED Quantity: 2 Range: 30m Wavelength: 850nm White LED Quantity: 2 Range: 30m Illuminator On/Off Control Auto/Scheduled/Always on/Always off VIDEO Max. Resolution 2560 X 1440 Main Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080 Sub-Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution: 640×480, 352×288, 320×240 Bit Rate Control CBR, VBR Video Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 H.264 Type Main Profile/High Profile H.264+ Main Stream Supported H.265 Type Main Profile H.265+ Main Stream Supported Video Bit Rate Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps IMAGE Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range DWDR SNR ≥ 52 dB Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 1 Region OSD Setting Yes AUDIO Audio Communication Two-Way Audio Audio Input Yes Audio Output Yes Audio Compression Yes Audio Sampling Rate 8KHz Environment Noise Filtering Yes Audio Bit Rate 64 Kbps(G.711 alaw) NETWORK Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS Wireless Rate 11 Mbps (802.11b) 54 Mbps (802.11g) 150 Mbps (802.11n) Wireless Security WPA/WPA2-PSK ONVIF Yes API ONVIF Simultaneous Live View 3 Main Streams & 3 Sub-Streams Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above Cloud Yes Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Frequency 2.4 GHz WIRELESS Standards IEEE 802.11b/g/n WiFi Channels UN: 1-13 US: 1-11 Frequency 2.4 GHz Wireless Transmit Power High Auto Wireless Channel N/A Wireless Statistics N/A Throughput Monitoring N/A Radio Bandwidth Auto: N/A 20M: Yes 40M: Yes Wireless Rate 11 Mbps (802.11b) 54 Mbps (802.11g) 150 Mbps (802.11n) Wireless Security WPA/WPA2-PSK Wireless Mode AP, AP Client ALARM AND EVENT MANAGEMENT Smart Event Area Intrusion Detection, Line-Crossing Detection, People Detection Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login) Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing Linkage Method N/A Output Notification Message Push INTERFACES Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port Audio Input Built-in Microphone Audio Output Built-in Speaker Alarm N/A Reset Button Yes Power DC Power Port Button Reset Button On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera Built-in Speaker Yes Audio N/A GENERAL Operating Temperature -30–60 °C Storage Temperature -40–60 °C Operating Humidity 95% or Less (Non-Condensing) Storage Humidity 95% or Less (Non-Condensing) Package Contents VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Power Adapter Mounting Accessories Dimensions( H X W X D ) 120 × 172 × 198 mm Material Plastic General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening Net Weight 0.62 Kg Gross Weight 1.21 Kg Power Consumption 12V DC: Max 15.5W Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug Antenna Quantity: 2 Type: 2.4GHz Welded Dipole Omni-Directional Antenna Gain: 2.0dBi Protection IP66 Product Dimensions (L x W x H) 120 × 172 × 198 mm (excluding antennas) Certifications CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC VIDEO/IMAGE Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 Frame Rate & Resolutions Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560×1440, 2304×1296, 2048×1280, 1920x1080Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640×480, 352×288, 320×240 Video Streaming Main Stream Sub-Stream Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light Video Bit Rate Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps SMART FEATURE-SET Smart Event Area Intrusion Detection, Line-Crossing Detection, Human Detection Basic Event Motion Detection, Camera Tampering Detection, Exception ( illegal login) Linkage Method Trigger Notification: ONVIF, HTTPS Region of Interest 1 Region WARRANTY & MANUFACTURER DETAILS Country of Origin China Manufacturer Details TP-Link Corporation Limited, Kowloon, Hong Kong Importer Details TP-Link India Private Limited, Palghar, Vasai, 401208 Packer Details TP-Link India Private Limited, Palghar, Vasai, 401208
