CCTV- Camera TP-Link VIGI C340-W 4MP

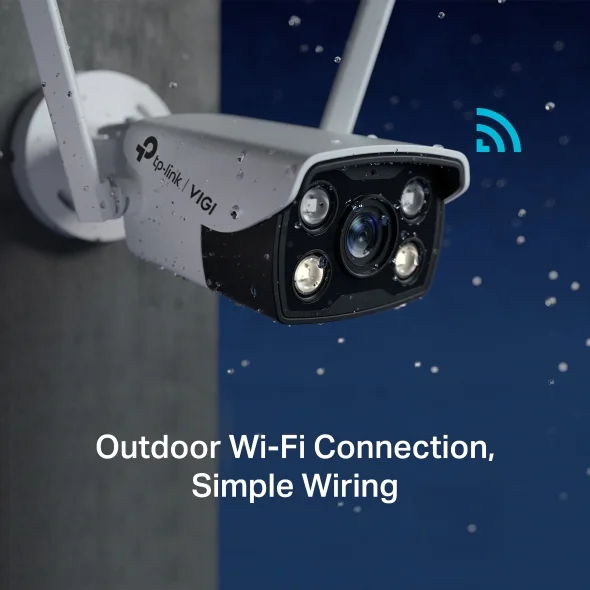

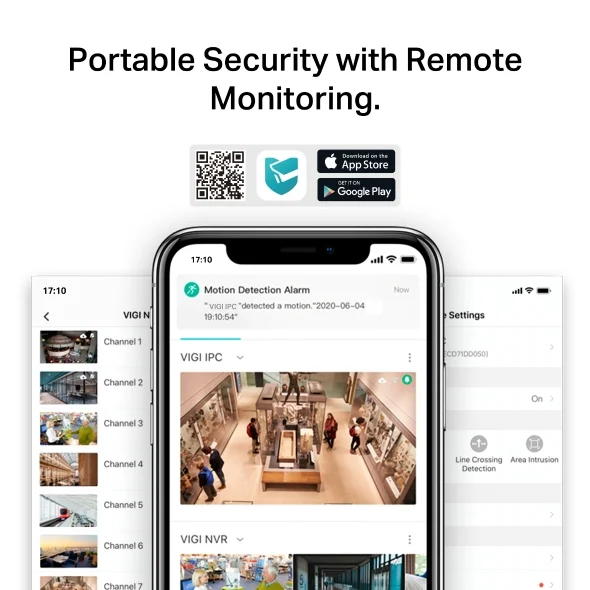

TP-Link VIGI C340-W 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera The TP-Link VIGI C340-W is a 4MP outdoor Wi-Fi bullet camera featuring 24/7 full-color night vision with built-in LEDs, IP66 weatherproofing, and efficient H.265+ video compression. Its smart detection capabilities—such as human detection, motion alerts, and line-crossing—provide real-time notifications. Wireless setup and management via the VIGI app make it versatile and easy to monitor remotely. TP-Link VIGI C340-W 4MP Outdoor Full-Color Wi-Fi Bullet Camera provides high-definition, 24-hour color video with a high-sensitivity sensor and built-in LED spotlights. It offers easy wireless setup, durable IP66 waterproofing, and smart detection features like human and motion detection, area intrusion, and line-crossing alerts. With H.265+ compression, it transmits clear, space-saving video, and the VIGI app allows remote monitoring and management from any mobile device. Brand Name TP-Link Model Name VIGI C340-W Dimension(cm) 25X15X11 Weight(kg) 0.58 CAMERA Image Sensor 1/3” Progressive Scan CMOS Shutter Speed 1/3 to 1/10000 s Slow Shutter Yes Aperture 4 mm: F1.6 Lens Fixed focal lens (4 mm) Lens Mount M12 Minimum Illumination 0 lux with IR/white Light Day/Night Mechanism IR Cut Filter Day/Night Switch Day/Night/Auto/Schedule-Switch Digital Noise Reduction 3D DNR WDR DWDR Weatherproof Rating IP66 IR Working Distance 30m Illumination Distance 30 m Viewing Angle (4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° LENS Type Fixed Focal Lens Focal Length 4 mm Aperture F1.6 FOV Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° Lens Mount M12 DORI Distance Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) ANGLE ADJUSTMENT (MANUAL) Range Pan: -90° to 90°, Tilt: -90° to 90° ILLUMINATOR IR LED Quantity: 2 Range: 30m Wavelength: 850nm White LED Quantity: 2 Range: 30m Illuminator On/Off Control Auto/Scheduled/Always on/Always off VIDEO Max. Resolution 2560 X 1440 Main Stream Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280x720Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution: 640×480, 352×288, 320x240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate Control CBR, VBR Video Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 H.264 Type Main Profile/High Profile H.264+ Main Stream Supported H.265 Type Main Profile H.265+ Main Stream Supported Video Bit Rate Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps IMAGE Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range DWDR SNR ≥ 52 dB Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 1 Region OSD Setting Yes AUDIO Audio Communication Two-Way Audio Audio Input Yes Audio Output Yes Audio Compression Yes Audio Sampling Rate 8KHz Environment Noise Filtering Yes Audio Bit Rate 64 Kbps(G.711 alaw) NETWORK Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS Wireless Rate 11 Mbps (802.11b) 54 Mbps (802.11g) 150 Mbps (802.11n) Wireless Security WPA/WPA2-PSK ONVIF Yes API ONVIF Simultaneous Live View 3 Main Streams & 3 Sub-Streams Client VIGI App, VIGI Security Manager, VIGI NVR, Web Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above Cloud Yes Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Network Storage NAS (NFS, SMB/ CIFS) Frequency 2.4 GHz WIRELESS Standards IEEE 802.11b/g/n WiFi Channels UN: 1-13 US: 1-11 Frequency 2.4 GHz Wireless Transmit Power High Auto Wireless Channel N/A Wireless Statistics N/A Throughput Monitoring N/A Radio Bandwidth Auto: N/A 20M: Yes 40M: Yes Wireless Rate 11Mbps(802.11b) 54Mbps(802.11g) 150Mbps(802.11n) Wireless Security PWPA/WPA2-PSK Wireless Mode AP, AP Client ALARM AND EVENT MANAGEMENT Smart Event Area Intrusion Detection, Line-Crossing Detection, People Detection Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login) Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing Linkage Method N/A Output Notification Message Push INTERFACES Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port Audio Input Built-in Microphone Audio Output Built-in Speaker Alarm N/A Reset Button Yes Power DC Power Port Button Reset Button Slot Micro SD card On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera Built-in Speaker Yes Audio N/A GENERAL Operating Temperature -30–60 °C Storage Temperature -40–60 °C Operating Humidity 95% or Less (Non-Condensing) Storage Humidity 95% or Less (Non-Condensing) Weight 195g Package Contents VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Power Adapter Mounting Accessories (Screws, Drywall Anchors, Hex Key) Dimensions( H X W X D ) 80 × 70.6 × 173.4 mm Material Plastic General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening Power Requirements 12V DC ± 5%, 5.5mm Coaxial Power Plug Net Weight 0.31 Kg Gross Weight 0.6 Kg Power Consumption 12V DC: Max 7W Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug Antenna Quantity: 2 Type: 2.4GHz Welded Dipole Omni-Directional Antenna Gain: 2.0dBi Protection IP66 Product Dimensions (L x W x H) 80× 173 × 71 mm (excluding antennas) Certifications CE, RCM, BSMI, VCCI, RoHS, NTRA, KC VIDEO/IMAGE Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 Frame Rate & Resolutions Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560×1440, 2304×1296, 2048×1280, 1920x1080Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640×480, 352×288, 320×240 Video Streaming Main Stream Sub-Stream Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light Video Bit Rate Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps SMART FEATURE-SET Smart Event Area Intrusion Detection, Line-Crossing Detection, Human Detection Basic Event Motion Detection, Camera Tampering Detection, Exception ( illegal login) Linkage Method Trigger Notification: ONVIF, HTTPS Region of Interest 1 Region WARRANTY & MANUFACTURER DETAILS Country of Origin China Manufacturer Details TP-Link Corporation Limited, Kowloon, Hong Kong Importer Details TP-Link India Private Limited, Palghar, Vasai, 401208 Packer Details TP-Link India Private Limited, Palghar, Vasai, 401208
